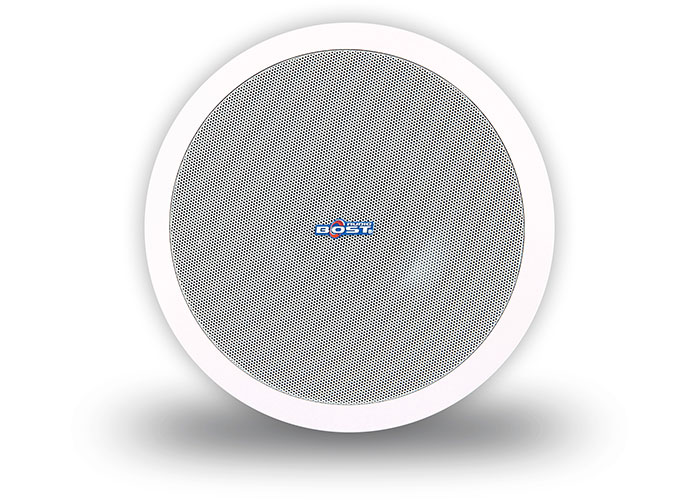

PRO-106D/PRO-108
技术参数
| 型号：Model | PRO-106D PRO-108D |
|
单元组成 Drivers |
LF:1x6" LF:1x8" |
|
额定功率Rated Power |
40W 50W |
|
峰值功率 Peak power |
80W 100W |
|
额定阻抗(Nominal impedance) |
8 ohms 8 ohms |
|
频率范围(Frequency Range) |
65Hz-20KHz 60Hz-20KHz |
|
灵敏度(Sensitivity(1m/1W)) |
89dB 90dB |
|
最大声压级(MAX SPL) |
108dB 110dB |
|
辐射角度：Dispersion(HxV) |
90°*60° |
|
|
|
|
产品尺寸 Dimensions(W*D*H)（mm) |
W240xD240xH160 W280xD280xH190 |
|
净重(Net weight) (Kg)3 |
3.17Kg 3.97Kg |
产品结构
