RF-12(Two-way 12" Full Range Speaker)
Product Description
1. box of high quality plywood incorporated grooves wedge bonding process, so that the housing structure is more durable. Aluminum strip and aluminum back plate decorated box, honorable golden highlights generous fashion.

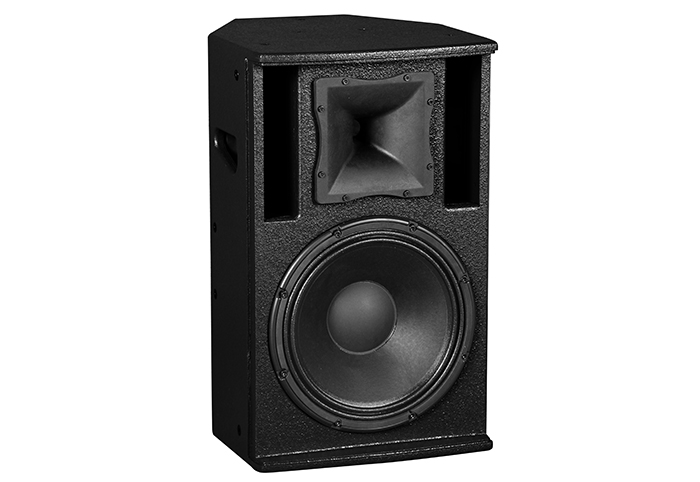

2. HF driver using 1.75 "diaphragm assembly imported from Europe, the horn can use multi-angle rotation, bass 12" uses the same materials imported from Europe made.
3. rapid expansion treble horn adjust the time difference between the high and low frequency unit and the correction phase angle difference and ensure a smooth wave fronts, providing precise beam pattern control while carefully designed to eliminate interference near the crossover region.
4. crossover network HI-CAP imported from Germany, high-quality capacitors and gold circular air-core inductors, Treble BOST patent protection circuit design.
5. Through many years of senior engineers KTV sound concept design, RF-12 is full of speakers with a warm low-frequency response, high frequency rounded soft delicate sense, whether it is singing or do high-end business meetings are the best kind of sound choice .
2. HF driver using 1.75 "diaphragm assembly imported from Europe, the horn can use multi-angle rotation, bass 12" uses the same materials imported from Europe made.
3. rapid expansion treble horn adjust the time difference between the high and low frequency unit and the correction phase angle difference and ensure a smooth wave fronts, providing precise beam pattern control while carefully designed to eliminate interference near the crossover region.
4. crossover network HI-CAP imported from Germany, high-quality capacitors and gold circular air-core inductors, Treble BOST patent protection circuit design.
5. Through many years of senior engineers KTV sound concept design, RF-12 is full of speakers with a warm low-frequency response, high frequency rounded soft delicate sense, whether it is singing or do high-end business meetings are the best kind of sound choice .
Applications
Application Range: KTV, Club, DISCO, nightclubs, dance halls, bars, luxury rooms, auditorium, karaoke rooms

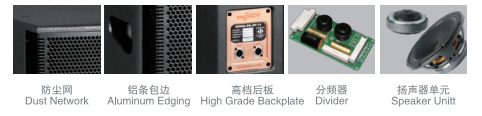

Product Features
Color Selection
Specifications
|
Drivers: |
LF: 1x12" / HF:1x1.75" |
|
Rated Power: |
450W |
|
Recommended Amplifier: |
600W |
|
Nominal Impedance: |
8 ohms |
|
Frequency Range: |
45Hz-19KHz |
|
Sensitivity(1m/1w): |
99dB |
|
MAX SPL: |
129dB |
|
Dispersion(HxV) |
90°*60° |
|
CONSTRUCTION |
|
|
Enclosure Material: |
Birch plywood |
|
Enclosure Grille: |
Black hole outside regular hexagonal steel mesh affixed breathable dust cloth |
|
Finish: |
Environmentally friendly water-based paint wear-resistant (color can be customized) |
|

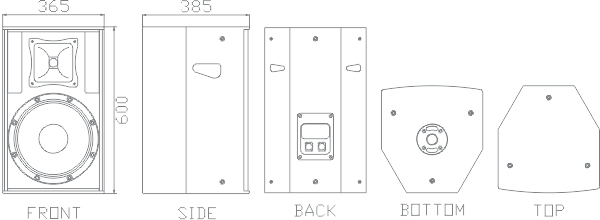

Dimensions(mm): |
W365xD385xH600 |
|
Net Weight: |
21.6Kg |
Configuration
