BL-13(13″2-way full range speaker)
Product Description
1. Cabinet is made of high quality plywood with the groove splicing process, which make the structure more durable, reduce dyeing, advance design makes the low frequency strong and pure.
2. The 3" treble driver diaphragm assembly is imported from Europe, the 13.5 inch woofer also uses the materials which imported from Europe and combined with aerospace magnetic design.The speaker is with ultra-high sound pressure level and clear, translucent medium and high frequency. It's the best choice no matter singing or doing high-end business meeting.
3.Crossover uses the original U.S. imported ERSE capacitance and super cooling aluminum shell resistance, they are used with aluminum radiator, maximized the efficiency and reduce the unnecessary distortion.
4. After many times careful simulations and optimized design experiments, the tweeter uses BOST patent protection circuit, ensure that no frequency drift occurs during high power operation work condition. The treble and bass are perfectly connected, the low frequency is thick and powerful, the medium frequency is bright and transparent, the voice is round and gorgeous, and it is easy to enter the microphone.
1. Cabinet is made of high quality plywood with the groove splicing process, which make the structure more durable, reduce dyeing, advance design makes the low frequency strong and pure.
2. The 3" treble driver diaphragm assembly is imported from Europe, the 13.5 inch woofer also uses the materials which imported from Europe and combined with aerospace magnetic design.The speaker is with ultra-high sound pressure level and clear, translucent medium and high frequency. It's the best choice no matter singing or doing high-end business meeting.
3.Crossover uses the original U.S. imported ERSE capacitance and super cooling aluminum shell resistance, they are used with aluminum radiator, maximized the efficiency and reduce the unnecessary distortion.
4. After many times careful simulations and optimized design experiments, the tweeter uses BOST patent protection circuit, ensure that no frequency drift occurs during high power operation work condition. The treble and bass are perfectly connected, the low frequency is thick and powerful, the medium frequency is bright and transparent, the voice is round and gorgeous, and it is easy to enter the microphone.
Applications
Application range: Luxury entertainment room, KTV,
slow rock bar, conference hall, lecture hall, multi-function hall, auditorium,
schools, cafes, KTV room, etc.

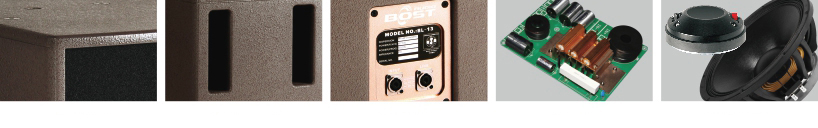

Product Features
Color Selection
Specifications
Drivers:
LF: 1x13.5" / HF:1x3"
Rated Power:
500W
Recommended Amplifier:
800W
Nominal Impedance:
8 ohms
Frequency Range:
35Hz-19KHz
Sensitivity(1m/1w):
100dB
MAX SPL:
130dB
Dispersion(HxV)
90° *60°
CONSTRUCTION
Enclosure Material:
Birch plywood
Enclosure Grille:
Posted breathable cotton dust inside black holes are hexagonal steel mesh
Finish:
Environmentally friendly water-based paint wear-resistant (color can be customized)

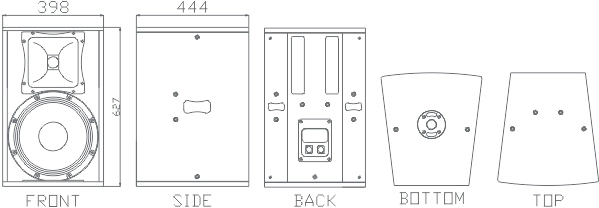

Dimensions(mm):
W398xD444xH627
Net Weight:
29.3Kg
Configuration
