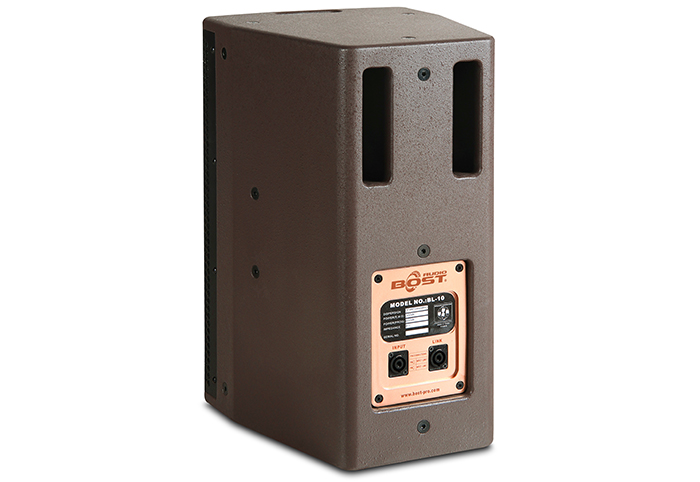

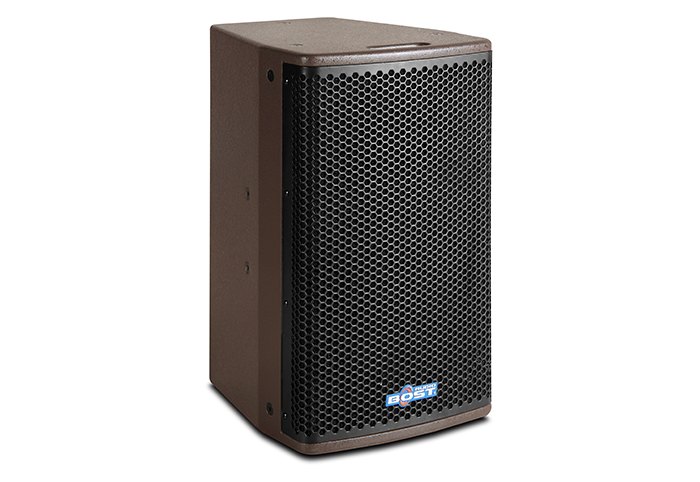

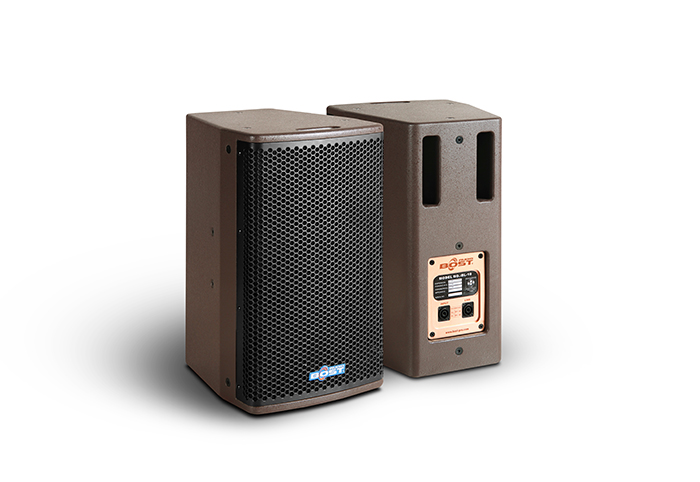

BL-10(10″2-way loudspeaker)
Product Description
1. Cabinet
is made of high quality plywood with the groove splicing process, which make
the structure more durable, reduce dyeing, advance design makes the low
frequency strong and pure.
2. The
1.75" treble driver diaphragm assembly is imported from Europe, the 10 inch woofer also uses the
materials which imported from Europe. .The speaker is with ultra-high sound pressure level and clear,
translucent medium and high frequency. It's the best choice no
matter singing or doing high-end business meeting.
3.Crossover
uses the original U.S. imported ERSE capacitance and super cooling
aluminum shell resistance, they are used with aluminum radiator, maximized the
efficiency and reduce the unnecessary distortion.
4. After many times careful simulations and optimized
design experiments, the tweeter uses BOST patent protection circuit,
ensure that no frequency drift occurs during high power operation work
condition. The
treble and bass are perfectly connected, the low frequency is thick and
powerful, the medium frequency is bright and transparent, the voice is round
and gorgeous, and it is easy to enter the microphone.
1. Cabinet is made of high quality plywood with the groove splicing process, which make the structure more durable, reduce dyeing, advance design makes the low frequency strong and pure.
2. The 1.75" treble driver diaphragm assembly is imported from Europe, the 10 inch woofer also uses the materials which imported from Europe. .The speaker is with ultra-high sound pressure level and clear, translucent medium and high frequency. It's the best choice no matter singing or doing high-end business meeting.
3.Crossover uses the original U.S. imported ERSE capacitance and super cooling aluminum shell resistance, they are used with aluminum radiator, maximized the efficiency and reduce the unnecessary distortion.
4. After many times careful simulations and optimized design experiments, the tweeter uses BOST patent protection circuit, ensure that no frequency drift occurs during high power operation work condition. The treble and bass are perfectly connected, the low frequency is thick and powerful, the medium frequency is bright and transparent, the voice is round and gorgeous, and it is easy to enter the microphone.
Applications
Application range: KTV,
slow rock bar, conference hall, lecture hall, multi-function hall, auditorium,
schools, cafes, KTV room, etc.

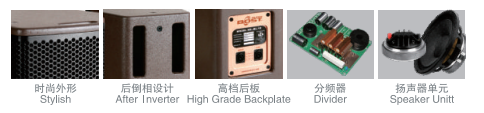

Product Features
Color Selection
Specifications
Drivers: |
LF: 1x10" / HF:1x1.75" |
Rated Power: |
300W |
Recommended Amplifier: |
450W |
Nominal Impedance: |
8 ohms |
Frequency Range: |
56Hz-20KHz |
Sensitivity(1m/1w): |
97dB |
MAX SPL: |
125dB |
Dispersion(HxV) |
90° *60° |
CONSTRUCTION |
|
Enclosure Material: |
Birch plywood |
Enclosure Grille: |
Black regular hexagonal hole dustproof steel mesh with breathable cotton |
Finish: |
brown color environmental protection water-based wear-resistant
paint (color can be choosed) |

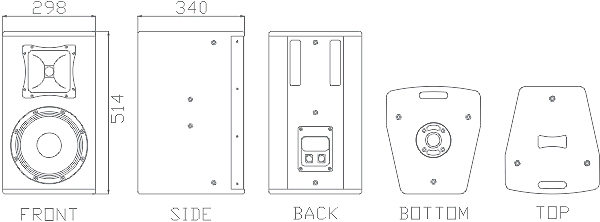

Dimensions(mm): |
W298xD340xH514 |
Net Weight: |
17.4Kg |
Configuration
