Products

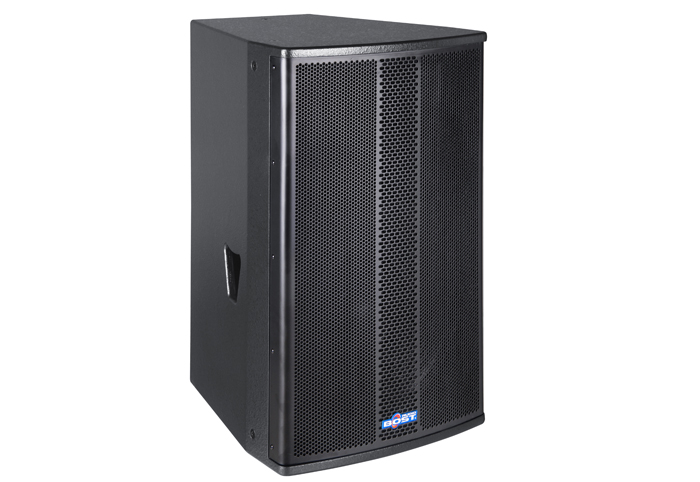

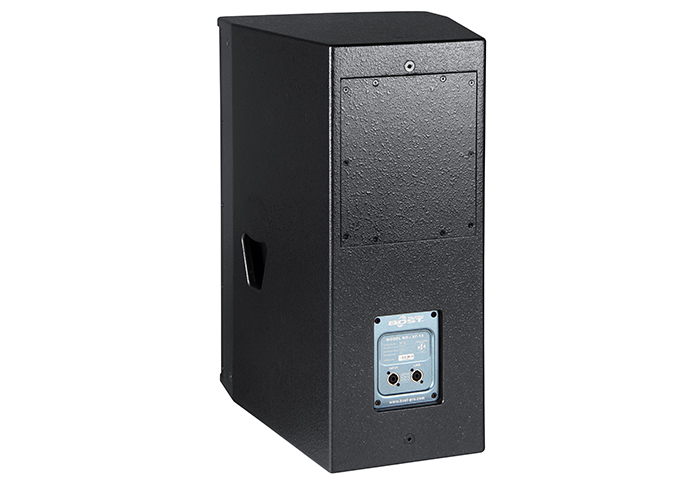

AF-15
Applications
Medium and small outdoor performance, Bar, Audio room, Banquet Hall, multi-function Hall, Auditorium, Theater, Medium and small sports venue (indoor)
Specifications
| Model | DV-15 |
|
Drivers |
LF: 1*15" / HF: 1*3" |
|
Rated Power |
550W |
|
Rated power |
1000W |
|
(Nominal impedance) |
8 ohms |
|
(Frequency Range) |
35Hz-20KHz |
|
(Sensitivity(1m/1W)) |
100dB |
|
(MAX SPL) |
131dB |
|
Dispersion(HxV) |
90° *60° |
|
Construction |
|
|
Enclosure Material |
Birch Plywood |
|
Enclosure Grille |
black hex hole lengthened stirp hole dust profft steel mesh with breathable cotton |
|
Finish |
Black, environmental protection, oily, abrasion resistant paint (customized according to customer requirements) |
|
Dimensions(W*D*H)（mm) |
W438*D453*H690 |
|
(Net weight) (Kg) |
32.5Kg |
