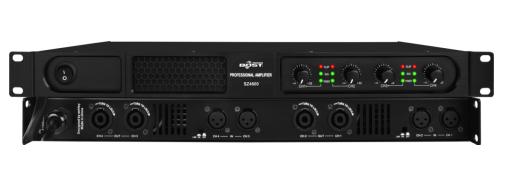

Large capacity switching power amplifier
Automatic limiting output, short circuit, overload, overtemperature, boot delay and other protection functions
Power amplifier equipped with delay start system, protect the sound box from impact and damage
◆ The rear plate is equipped with two channels,
◆ Balanced input interface
◆ SPEAKON output connector
◆ 483MM standard frame structure
Power amplifier part of the switching power supply part has a separate cooling system
◆ The cooling fan is controlled by the advanced continuously variable speed circuit
◆ 1U design, light body, easy to carry and install
Output: (8Ω, 1kHz):4x600W
Output: (4Ω, 1kHz) : 4x1200W
Frequency Response: 20Hz~20kHz ±3dB
Total Distortion: 1%(8Ω, 450W)
Input Sensitivity: +4dB * (1.23V)
Input Impedance: 10kΩ(electronically Balanced /Balanced)
S/N Ratio: ≥80dB
Connector: Input (CH1-2):XLR input connector;
Output (CH1-2):SPEAKON
Power: AC Input(CH1-2):XLR Input Connector; Output(CH1-2):SPEAKON Output; Power: AC power supply.
Indicator Lights:
Power Indicator x 1 (Green), Input Indicator x 2(Yellow), Peak Indicator x 2(Red); Feedback Protect Indicator x 1(Red)
Power Supply Voltage:
AC110~120V, 50/60Hz AC220~240V, 50/60Hz(Via inside jumping switch)
1/8 Rated Activity Consumed Power:50W,80W, 110W
Working Temperature Range:0 to 50 ° C
Working Humidity Range: Working humidity range:
Under 90% RH (But it can not be condensation)
Dimensions: 58.5*39.8*47.8 (cm),
Net Weight: 7kg
