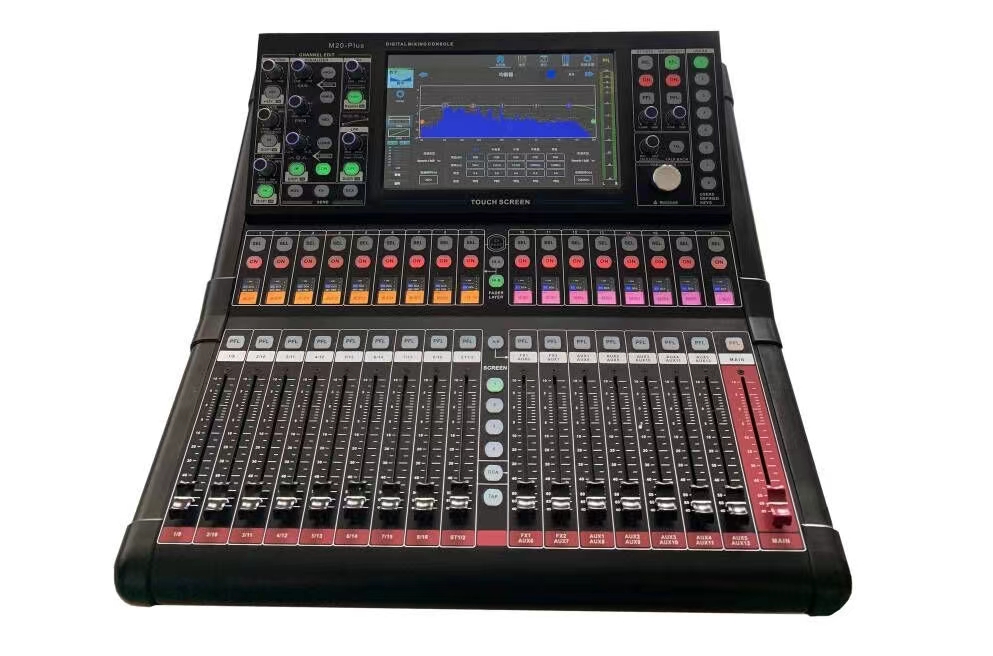

VS20M digital audio mixer
Applications
Applications: conference rooms, multi-function halls, small performances, small bands, government, schools, bars, wedding companies, leasing companies, banquet halls, military, cultural halls, cultural centers, exhibitions, etc.
Specifications
operating system:
Developed based on Linux operating system, no fear of viruses, safer and more stable operation
4-core CPU processor, 1G main frequency, quick boot in 17 seconds, running faster
Chinese and English operation interface, free to switch, easier to use
Shutdown parameters are automatically saved, no need to worry about data loss

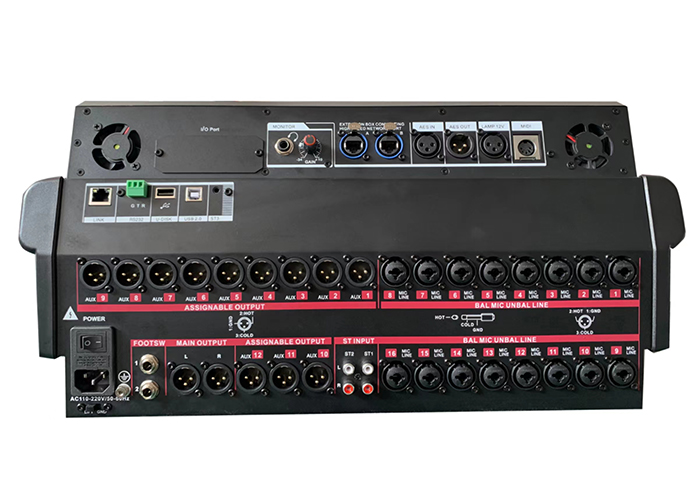

input Output:
Local 16-channel MIC/Line input, 2 groups of 3.5 lotus stereo input, 1 group of digital input: optical fiber/sound card, MP3
10-channel signal output (main output L, R, 6-channel AUX output, 4-channel group output)
Network remote audio expansion 16-channel Mic/Line input, 8-channel signal output
Up to 32 Mic/Line inputs, 18 mixed signal outputs
Product parameters
•･Input channel pan adjustment
•･MIC input gain adjustment (digital gain)
•･Mic input channel parity or up and down stereo joint modulation (Linked)
•･+48V phantom power (MIC channels can be turned on and off independently)
•･Built-in compressor, noise gate, high and low pass filter, 5-band parametric equalization, delay.
•･Channel parameter quick copy function
•･I/O EQ ON/OFF
•･Multifunction Knob
•･Multi-function menu for each channel, mute and monitor
•･All channels are equipped with 100MM travel electric faders, signal and peak lights (18 ALPS electric faders)
•･8 DCA groups
•･8 mute groups
•･Built-in feedback suppressor
•･Built-in signal generator (pink noise/sine wave/white noise)
••･AUX output (pre/post fader)
•･Output processing: high and low pass filtering, 15-band parametric EQ, compressor, delay, phase
•･Double row 3-color 12-segment level indicator
•･Built-in sound card (MP3, PC direct music playback)
•･Sound card/MP3 digital recording function
•･4 quick scene recall modes, 100 scene storage, customizable scene name, seamless scene switching, no sound interruption
•･Storage and recall of user parameters (can be managed on PC)
•･Local built-in two independent DSP effects,
•･FX Foot Switch Connector
•･Optical input/output
•･Multi-operating system control software (IOS system, Android system, WINDOWS system)
•･ Support wired network port adjustment (or wireless adjustment with external router)
•･7 inch 1024*600 HD capacitive touch display
•･Supports user-customizable layers
Machine size
Length, width and height: 600*610*305MM (length includes 6.35 input seat, width includes side plate, height includes machine foot; does not include knob
