Developed based on Linux operating system, no fear of viruses, safer and more stable operation
4-core CPU processor, 1G main frequency, quick boot in 17 seconds, running faster
Chinese and English operation interface, free to switch, easier to use
Shutdown parameters are automatically saved, no need to worry about data loss

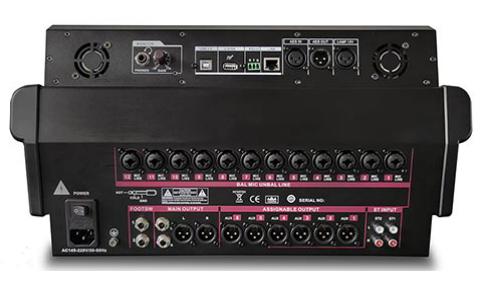

input Output:
18 signal inputs
12 MIC/Line inputs, 2 sets of 3.5 lotus stereo inputs, 1 set of digital inputs: sound card, MP3, AES digital input/output
10-channel signal output
Main output L, R, 2 SUB group outputs, 4 AUX1-4 auxiliary outputs, 1 headphone monitor output

Applications: conference rooms, multi-function halls, small performances, small bands, government, schools, bars, wedding companies, leasing companies, banquet halls, military, cultural halls, cultural centers, exhibitions, etc.

Product parameters
•･MIC input gain adjustment (smooth digital gain, participate in saving to scene)
•･Mic input channel (Linked) odd-even stereo joint modulation
•･+48V phantom power (MIC channels can be turned on and off independently, participating in saving to the scene)
•･Mic input channel independent PAD attenuation switch
•･Input processing: built-in compressor, noise gate, high and low pass filters, 5-band parametric equalization, delay.
•･Channel parameter quick copy function
•･Multi-function menu for each channel, mute and monitor
•･All channels are equipped with 100MM travel electric faders, signal and peak lights (13 ALPS electric faders)
•･Independent physical fader control for input and output
•･Fader function supports user customization
•･Two fader layer page turning buttons (input page turning, output and effect fixed faders, the operation is more convenient and quick)
•･6 DCA groups, 6 mute groups
•･Integrated feedback suppressor management
•･Built-in signal generator (pink noise/sine wave/white noise), which can be customized to output from any one or more output channels
•･Built-in real-time spectrum RTA function (color can be edited)
•･Scene mode editing supports Chinese input method
•･Integrated automix function
••･AUX output (pre/post fader) can be set
•･Output processing: high and low pass filtering, 12-band parametric EQ (GEQ supported by manipulation on the fader), compressor, delay, phase
•･Stereo digital recording function
•･Built-in sound card (MP3, PC direct playback, recording)
•･4 quick scene recall modes, 100 scene storage, customizable scene name, seamless scene switching, no sound interruption
•･Local built-in two independent DSP effects, preset multiple effect modes for users to use directly
•･FX effect foot switch connector
•･12V output interface for external lighting equipment
•･One key to restore factory settings
•･Support 232 central control
•･Multi-operating system control software (IOS system, Android system, WINDOWS system)
•･ Support wired network port adjustment (or wireless adjustment with external router)
•･5" HD capacitive touch display
