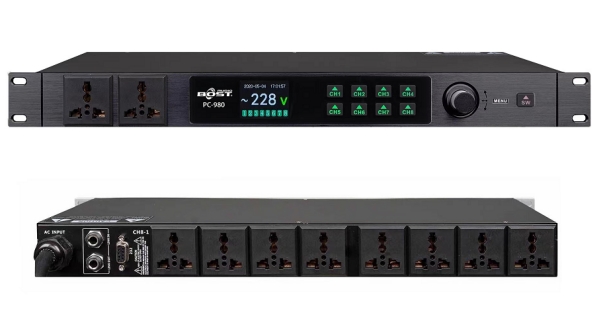

PC-980 with 232 interface
Product Description
1 Panel Color: Black
2 Power input conditions (single-phase 3-wire): AC190-250V 50-60HZ two-phase (three-wire: zero, fire, ground)
3-channel quantity: 8-way universal socket relay controlled
4 Relay controlled output maximum withstand single power/total power (reactive power): 6000W/10000W maximum withstand reactive power
5 Output power socket specifications: flame retardant ABS material, can withstand a maximum current of 13A phosphor bronze material, standard universal socket
6 Features: 1: Dot matrix function display 2: LCD voltage display 3: Sequential turn on and reverse order off, freely set channel 4: COM central control (command control) or built-in software control 5: Time interval adjustable 6: Free Channel closed 7: Cascading machine ID: 0-255 10: Central control and external control 8: Panel channels are closed independently 9: 6 groups of timing functions 10: The use time can be set (0-99 hours)
7 Interval time/timing time of each switch: default 1 second (can be set freely)
8 Output relay contact current: 40A 277VAC
9 Specifications of circuit board: double-sided fiberboard, secondary thickening and thickening of main power wiring
10 Power supply specifications: applicable voltage AC190-260V 50-60HZ
11 Main cable specification: 3*4 square cable, the total length is 1.8 meters European plug
12 Turn on type: push-button tact switch
13 Single-channel independent switch function: support panel independent control (software setting control)
14 Function display voltage display meter type: dot matrix function display voltage meter and function menu
15 Stacking machine cascading function: yes
16 External control switch interface: RS232 COM interface central control
17 Random control software and support for central control functions and ID number allocation: own instruction code and control software, support central control, ID: 0-255
18 Power purification function (EMI professional grid filter): Yes (optional separate or each channel with filter)
17 Body size: length 480MM * width 185MM * height 46MM (non-standard 1U)
18 Single machine packaging size: length 555MM * width 255MM * height 85MM (American cattle carton) Gross weight: 3.5KG
19 Single piece weight and outer packaging size: 1 piece and 5 sets total 18KG, outer packaging size: length 445*width 270*height 570MM
2 Power input conditions (single-phase 3-wire): AC190-250V 50-60HZ two-phase (three-wire: zero, fire, ground)
3-channel quantity: 8-way universal socket relay controlled
4 Relay controlled output maximum withstand single power/total power (reactive power): 6000W/10000W maximum withstand reactive power
5 Output power socket specifications: flame retardant ABS material, can withstand a maximum current of 13A phosphor bronze material, standard universal socket
6 Features: 1: Dot matrix function display 2: LCD voltage display 3: Sequential turn on and reverse order off, freely set channel 4: COM central control (command control) or built-in software control 5: Time interval adjustable 6: Free Channel closed 7: Cascading machine ID: 0-255 10: Central control and external control 8: Panel channels are closed independently 9: 6 groups of timing functions 10: The use time can be set (0-99 hours)
7 Interval time/timing time of each switch: default 1 second (can be set freely)
8 Output relay contact current: 40A 277VAC
9 Specifications of circuit board: double-sided fiberboard, secondary thickening and thickening of main power wiring
10 Power supply specifications: applicable voltage AC190-260V 50-60HZ
11 Main cable specification: 3*4 square cable, the total length is 1.8 meters European plug
12 Turn on type: push-button tact switch
13 Single-channel independent switch function: support panel independent control (software setting control)
14 Function display voltage display meter type: dot matrix function display voltage meter and function menu
15 Stacking machine cascading function: yes
16 External control switch interface: RS232 COM interface central control
17 Random control software and support for central control functions and ID number allocation: own instruction code and control software, support central control, ID: 0-255
18 Power purification function (EMI professional grid filter): Yes (optional separate or each channel with filter)
17 Body size: length 480MM * width 185MM * height 46MM (non-standard 1U)
18 Single machine packaging size: length 555MM * width 255MM * height 85MM (American cattle carton) Gross weight: 3.5KG
19 Single piece weight and outer packaging size: 1 piece and 5 sets total 18KG, outer packaging size: length 445*width 270*height 570MM
