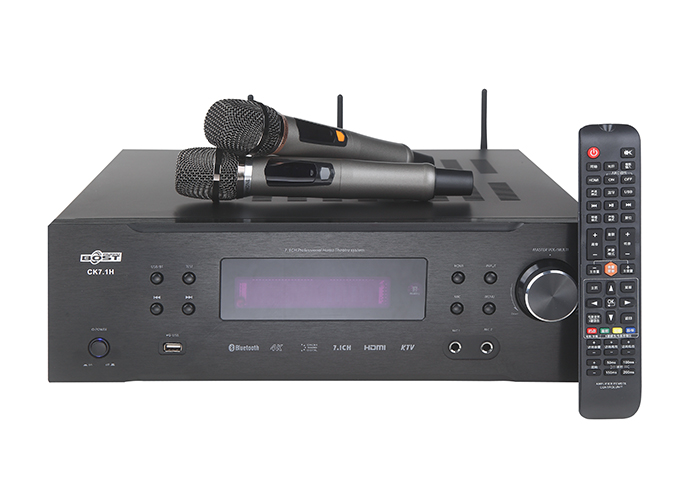

F3 CK7.1H

Product Features

Huawei Haisi system is installed inside, and it has independent module of song player, which can realize voice point, song cutting and recording of microphone
The functions of 51 theaters can be viewed online, and high-definition films can be played locally by hanging on hard disk or U disk. It can
Realize wireless docking around, to solve the problem of cabling for you. At the same time, there are sofa housekeeper, folk songs, HiFi
Music, TV home and other high-quality app, is a set of entertainment KTV, high-definition cinema, TV live broadcast, HiFi
Music in one amplifier decoding system host.

Specifications

Hdmi3 in and out, 4K Ultra HD, 3D support
7.1 decoding, support Dolby true HD, DTS master and lpcm HD audio decoding
8-channel independent amplification, support 2 groups of active and 1 group of passive subwoofer; 3 groups of stereo input,
With recording output and surround output
Simulation of double reverberation karaoke effect
Full function infrared remote control, remote control battery DC 3V (2 aaa7 batteries)
Bluetooth function and USB lossless playback
Main channel, middle output peak power: 200wx3
Bass output: 400W
● peak power of surround output: 200wx4
Main channel frequency response: 100Hz ~ 20KHz ± 2dB
● crosstalk attenuation of left and right channels: > 42db
Input sensitivity: 280 ± 40mv
Speaker: front channel (FL, FR): 4-16 Ω
Subwoofer (SW): 4-16 Ω
Central channel (CEN): 4-16 Ω
Surround channel (SL, Sr, BSL, BSR): 8-16 Ω
Tone control: Bass 100Hz: ± 14dB (± 2dB)
High pitch 1kHz: ± 14dB (± 2dB)
Signal to noise ratio (main channel): > 85dB (A-weighted)
Power supply: AC ~ 220 V / 50 Hz 10%
Dimension: 430x380x130mm
Weight: 11.53kg
