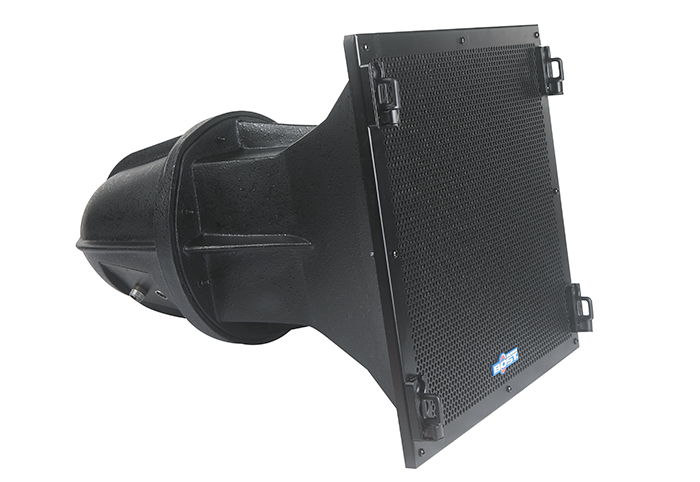

HG12
Product Description
The box is made of glass fiber reinforced plastic, which is waterproof, high temperature resistant and anti-corrosion.
The whole HG12 adopts coaxial structure, with even superposition of middle and high pitch. After frequency division, the acoustic interference is well adjusted.
The treble driver adopts 1.75 "components imported from Europe, and the bass 12" is made of materials imported from Malaysia. After horn compression, the overall sound pressure is high.
The hardware rack is durable and easy to install and fix.
The frequency division network adopts black polypropylene capacitor and air core inductor to maximize efficiency and reduce unnecessary distortion.
The patent protection circuit of Bost company is adopted for the treble, the connection between high and low voice is perfect, and the timbre performance is outstanding.
The whole HG12 adopts coaxial structure, with even superposition of middle and high pitch. After frequency division, the acoustic interference is well adjusted.
The treble driver adopts 1.75 "components imported from Europe, and the bass 12" is made of materials imported from Malaysia. After horn compression, the overall sound pressure is high.
The hardware rack is durable and easy to install and fix.
The frequency division network adopts black polypropylene capacitor and air core inductor to maximize efficiency and reduce unnecessary distortion.
The patent protection circuit of Bost company is adopted for the treble, the connection between high and low voice is perfect, and the timbre performance is outstanding.
Specifications
| Model | HG12 |
|
Drivers |
LF: 1*12" / HF: 1*1.75" |
|
Rated Power |
450W |
|
Rated power |
600W |
|
Nominal impedance |
8 ohms |
|
Frequency Range |
55Hz-19KHz |
|
Sensitivity(1m/1W) |
100dB |
|
MAX SPL |
130dB |
|
Dispersion(HxV) |
90°*90° |
|
Construction |
|
|
Enclosure Material |
Glass fiber reinforced plastics |
|
Enclosure Grille |
Black round hole dustproof steel mesh with breathable cotton inside |
|
Finish |
Black environment friendly oil based wear resistant paint (color can be customized according to customer requirements) |
|
Dimensions(W*D*H)（mm) |
580*800*580 |
|
Net weight (Kg) |
32.2Kg |
