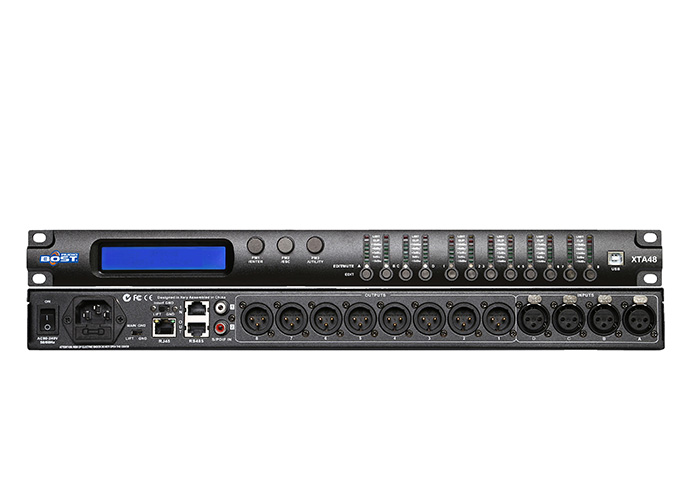

XTA48
Specifications
Outstanding performance 24 bit high-end converter plus 96KHz frequency, with excellent sound quality performance
4-input + 8-output perfect hybrid matrix speaker processor
First class DSP processing technology, each input channel has 30 balanced filters
Each output channel has 11 balanced filters
Each input and output filter can be selected as bell, Schaeffer, high / low pass, band pass, notch filter and all pass filter
Filter frequency: 20Hz ~ 20KHz
Slope: - 6dB / OCT to - 48dB / OCT optional (type: Butterworth, linquetz Rayleigh, Bessel, optional)
With overflow limit processing function
Each output channel has a precise dynamic range controller, which is operated by a voltage limit according to the RMS value of the voltage limit input
The adjustable delay time of each input channel is up to 480ms, and that of each output channel is up to 270ms
It can be directly connected to the computer through USB network
RS485 / TCPIP can also be used to connect the computer to set, monitor and control the machine through remote PC software
control
The front control panel has a LCD display window, and the buttons can operate various functions of the machine
The front panel has 7 lights to display the output level or voltage limit
PC software of remote control allows 32 machines to be connected at the same time
Default storage function: up to 32
Password locking function
audio frequency
Analog input 4 x XLR balanced
Analog output 8 x XLR balanced
Digital input 2 digital audio; input sensitivity 0 DBU
Minimum load 150 ohm
Thd + n distortion 0.001% at 1kHz 0dBU
S / N SNR > 110dba
Frequency response 20Hz – 20kHz; - 0.5dbu at 20Hz and 20KHz
Ad & DA conversion 24bit-96khz
DSP processing
DSP processing Marani? DSP, 24X32 bit filter processing, 54 bit accumulation register, 96 bit precision intermediate data operation results
A filter with 30 equalizers on the input of parametric equalizer
An 11 segment equalizer on the output
Input / output gain: input gain range: - 18db ~ + 12dB, step accuracy: 0.1dbu
The input gain range is - 18db ~ + 12dB, and the step precision is 0.1dbu
Filter type all equalization filters can be set as bell, Schaeffer, high / low pass, band pass, notch filter and all pass filter
The gain range of the filter is - 15dbu ~ + 15dbu, and the step precision is 0.5dbu
The center frequency can be adjusted in the frequency band of 20Hz ~ 20kHz with the step precision of 1Hz
The Q-value of filter / broadband bell filter ranges from 0.4 to 128, and the step is 100
The Q value range of Schaeffer / high pass / low pass filter is 0.1 ~ 5.1, and the step is 100
The band-pass / all-pass filter / notch filter Q ranges from 4 to 104 in steps of 100
High low pass filter
Butterworth slope is 6 / 12 / 18 / 24 / 36 / 48dB per octave
Bessel slope: 12 / 24dB per octave
The slope of linquetz Rayleigh is 12 / 24 / 36 / 48dB per octave
Noise generator white / pink noise generator, level range: - 40dbu ~ 0dBU
Input noise threshold range: - 80dbu ~ - 50dbu, or optional stop
Start time: 1ms ~ 1000ms; release time: 10ms ~ 1000ms
Input / output RMS limiting threshold range: 20dbu ~ 10dbu
The optional ratio range: 2:1 ~ 32:1; inflection point: 0 ~ 100%
Supply range: - 12dbu ~ + 12dbu
Start time: 5ms ~ 200ms; release time: 0.1s ~ 3S
Output peak voltage threshold range: 20dbu ~ - 10dbu
Start time: 1ms ~ 900ms; release time: 0.1s ~ 5S
Built in overflow process dynamic margin 12dB
Path full matrix hybrid
The delay time is 848998 MS, and the step precision is 21us
Bottom noise - 90dbu
outline
Preset parameters 32 user preset
Front panel 2X24 character LCD display
Input 7 light display [- 15dbu to + 15dbu; clipping; limit]
Output 7 lamp shows [- 15dbu to + 15dbu; clipping; limit], output lamp can be used to display output level or voltage limit
Red / blue LED (mute / Edit) shows the status of each channel
PM1 / enter, PM2 / ESC and PM3 / utility are key potentiometer entry / exit / application switches
Edit / mute key can control and edit each channel separately
PC card reader
Type B USB connector
Rear panel 4 x XLR female connector (input)
8 x XLR male connector (output)
2 x RCA connector (SPDIF input audio input)
2 x RJ45 - RS485 I / O connector
1 x RJ45 - Internet socket (10 / 100 TCP-IP)
2 x earth / suspension toggle switch
IEC C13 16A power socket; ship type power switch
AC power supply: 90-240vac (50 / 60Hz) - 40W
Size 482x44x229mm 1U
Net / gross weight 3.5 kg / 4 kg
