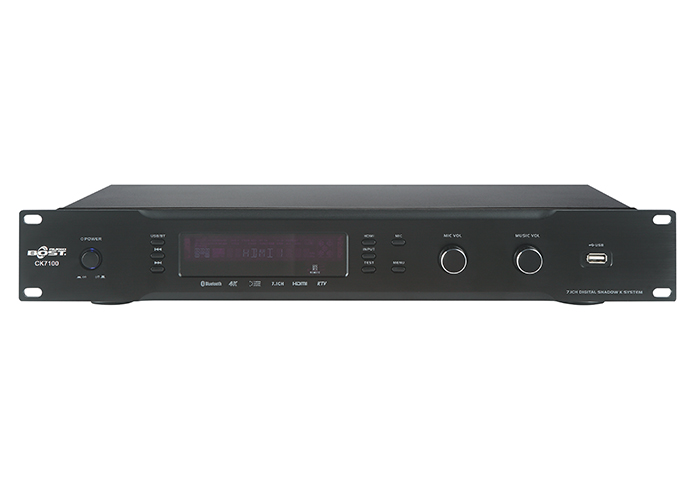

CK7100 decoder
Product Features
）The 7.1 decoding board adopts the integrated design of HDMI HD transmission and 7.1 channel decoder to further enhance the anti-interference performance
2) The decoder supports dolbytruehd. Dolbydigitalplus. Dolbydigital. Dts-hdmasteraudio. Dtses. Dolby Digital 5.1, DTS PCM 2.1. Lpcm 5.1. Lpcm7.1. DTS CD. Wav. AAC, etc
3) Hdmi1.4 supports up to 3840x2160, 30hz-50hz, 4K / 2K video format, with four input and one output. It can be connected to a variety of devices
Support 8 channels of lpcm audio output at the same time. Support up to 8 channels of IIS digital audio output, support HD full format audio output
4) : this decoding system has its own USB digital format decoding and supports USB multi format decoding, Support dolbytruehd. Dolbydigitalplus dolbydigital DTS hdmasseaudio dtses Dolby Digital 5.1, DTS. PCM 5.1. Lpcm7.1. DTS CD. Wav AAC MP3 ape (APE supports full stream decoding) FLAC (FLAC supports full stream decoding) support the highest Blu ray audio format DSD (up to 128fs bit rate) decoding
5) Support 1-way aux input, optical fiber and coaxial 2-way digital signal input
6) Support to decode USB input digital audio signal or aux input stereo signal into 7.1 channel signal output
7) Support 7.1 channel noise test function, convenient for installation test and detection
8) : support large capacity U disk to read data, up to 100g
9) Support intelligent central control system
10) : support two-way microphone input; built in microphone anti howling function;
11) : support a group of microphone original sound monitoring output;
12) : support one-way analog monitoring / recording output;
13) : equipped with full function infrared remote control;
14) Equipped with fluorescent VFD screen, the operation display is more intuitive
2) The decoder supports dolbytruehd. Dolbydigitalplus. Dolbydigital. Dts-hdmasteraudio. Dtses. Dolby Digital 5.1, DTS PCM 2.1. Lpcm 5.1. Lpcm7.1. DTS CD. Wav. AAC, etc
3) Hdmi1.4 supports up to 3840x2160, 30hz-50hz, 4K / 2K video format, with four input and one output. It can be connected to a variety of devices
Support 8 channels of lpcm audio output at the same time. Support up to 8 channels of IIS digital audio output, support HD full format audio output
4) : this decoding system has its own USB digital format decoding and supports USB multi format decoding, Support dolbytruehd. Dolbydigitalplus dolbydigital DTS hdmasseaudio dtses Dolby Digital 5.1, DTS. PCM 5.1. Lpcm7.1. DTS CD. Wav AAC MP3 ape (APE supports full stream decoding) FLAC (FLAC supports full stream decoding) support the highest Blu ray audio format DSD (up to 128fs bit rate) decoding
5) Support 1-way aux input, optical fiber and coaxial 2-way digital signal input
6) Support to decode USB input digital audio signal or aux input stereo signal into 7.1 channel signal output
7) Support 7.1 channel noise test function, convenient for installation test and detection
8) : support large capacity U disk to read data, up to 100g
9) Support intelligent central control system
10) : support two-way microphone input; built in microphone anti howling function;
11) : support a group of microphone original sound monitoring output;
12) : support one-way analog monitoring / recording output;
13) : equipped with full function infrared remote control;
14) Equipped with fluorescent VFD screen, the operation display is more intuitive
Specifications
Frequency response: 20Hz ~ 20KHz ± 2dB
Harmonic loss of direct current: < 0.2%
● crosstalk attenuation of left and right channels: > 45dB
Input sensitivity: 500 ± 20mV
Tone control: Bass 100Hz: ± 10dB (2dB)
High pitch 1kHz: ± 10dB (2dB)
Signal to noise ratio (main channel): 90dB (A-weighted)
Remote control: Standard: Infrared
Battery: DC 3V (2 aaa7 batteries)
Power supply: AC ~ 220 V / 50 Hz 10%
Dimension (L x W x H): 480x220x60mm
Weight: 4.4kg
Harmonic loss of direct current: < 0.2%
● crosstalk attenuation of left and right channels: > 45dB
Input sensitivity: 500 ± 20mV
Tone control: Bass 100Hz: ± 10dB (2dB)
High pitch 1kHz: ± 10dB (2dB)
Signal to noise ratio (main channel): 90dB (A-weighted)
Remote control: Standard: Infrared
Battery: DC 3V (2 aaa7 batteries)
Power supply: AC ~ 220 V / 50 Hz 10%
Dimension (L x W x H): 480x220x60mm
Weight: 4.4kg
