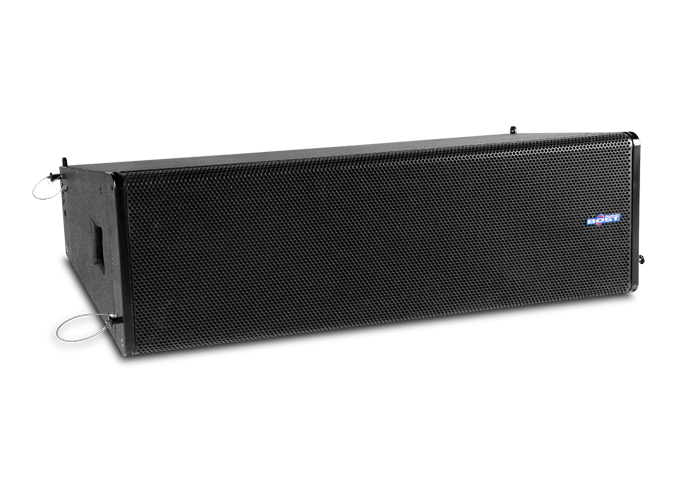

LA212A(2*12" line array system)
Product Description
1.quality plywood fit into the groove wedge bonding process, make more robust box structure, BOST unique cabinet construction technology to effectively reduce cabinet strengthen useless and harmful resonant bass that sounds cleaner, more efficient overall output.
2.LA212A systems for a variety of optimized combination of design, mold design hanging device largely make installing the product more simple and convenient, junction more reasonable, more scientific focus, which can meet the 12 LA212 lifting without security problems.
3. LA212A linear array uses a 3 "neodymium compression driver components imported from Europe with the index of horn design, high frequency distortion to a minimum, and two 12" neodymium woofer combination of materials imported from Europe.
4.unique crossover network design, imported from Germany golden HI-CAP capacitors and resistors with gold aluminum heat sink, greatly enhance the power capacity, Treble BOST patent protection circuit and temperature protection circuit inductance design.
5.LA212A high frequency linear array delicate transparent, low-thick there is strength, suitable for a variety of sound reinforcement requirements for medium-sized gigs with SK218B same time, you can get a better acoustic properties.
2.LA212A systems for a variety of optimized combination of design, mold design hanging device largely make installing the product more simple and convenient, junction more reasonable, more scientific focus, which can meet the 12 LA212 lifting without security problems.
3. LA212A linear array uses a 3 "neodymium compression driver components imported from Europe with the index of horn design, high frequency distortion to a minimum, and two 12" neodymium woofer combination of materials imported from Europe.
4.unique crossover network design, imported from Germany golden HI-CAP capacitors and resistors with gold aluminum heat sink, greatly enhance the power capacity, Treble BOST patent protection circuit and temperature protection circuit inductance design.
5.LA212A high frequency linear array delicate transparent, low-thick there is strength, suitable for a variety of sound reinforcement requirements for medium-sized gigs with SK218B same time, you can get a better acoustic properties.
Color Selection
Specifications
|
Drivers: |
LF: 2x12"75 core,170 magnet / HF:1x3" 75 core, 170 magnet |
|
Rated Power: |
800W |
|
Recommended Amplifier: |
1000W |
|
Nominal Impedance: |
4 ohms |
|
Frequency Range: |
45Hz-19KHz |
|
Sensitivity(1m/1w): |
101dB |
|
MAX SPL: |
133dB |
|
Dispersion(HxV) |
100°*30° |
|
CONSTRUCTION |
|
|
Enclosure Material: |
Birch plywood |
|
Enclosure Grille: |
Paste breathable cotton dust within a regular hexagonal holes steel |
|
Finish: |
Environmentally friendly water-based paint wear brown (color can be customized) |
|
Dimensions(mm): |
W1120xD555xH348 |
|
Net Weight: |
45.5Kg |
Configuration
