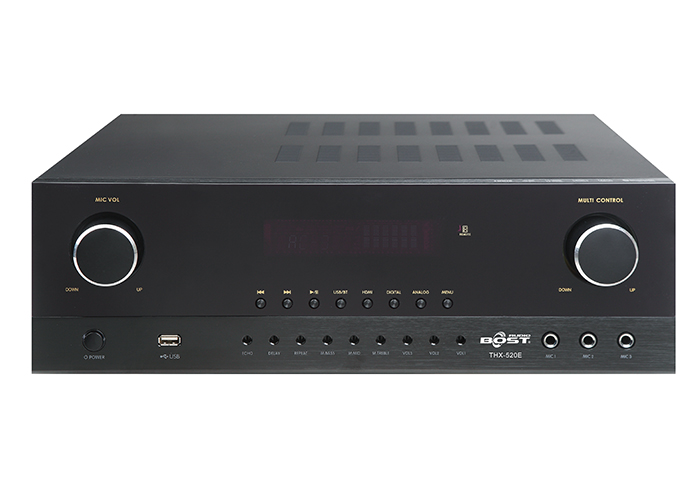

THX-520E(6 channel home theater amplifier with decoding)
Specifications

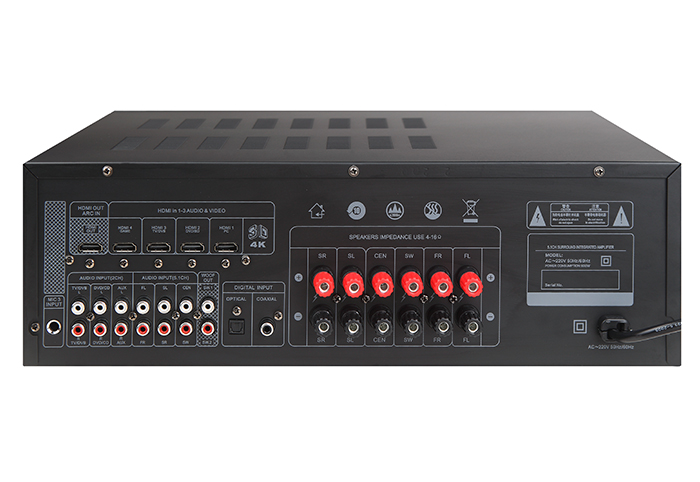

Microphone 3-way input interface, analog stereo 3-way input interface, high-definition HDMI with four inputs and one output, with optical fiber, coaxial input interface, and six-channel audio input interface
With 2 ultra-low audio output interface, this machine uses 7.1CH decoder chip
This machine comes with USB playback and BT Bluetooth functionmain channel power:（L) 8Ω 120W
main channel power:（R) 8Ω 120W
center channel power:（C) 8Ω 100W
left back sourrond power:（SL) 100W
left back sourrond power:（SR) 100W
left surround power:（BL) /
right surround power:(BR) /
subwoofer power:（SW）8Ω 150W
S/N Ratio 105dB
Conversion Rate 60v/µS
Damping Factor 450：1
Frequency Response 20Hz-20KHz(+/-0.5dB)
THD ≤0.01%Rated Power@8Ω 1KHZ
IMD ≤0.01%Rated Power@8Ω
Input Sensitvity 1.0v
Input Impedance 20KΩ (Balance)/10KΩ (Unbalance)
Crosstalk ≤-70dB
main power supply: -230V50/60Hz ; HUSE:T20A
