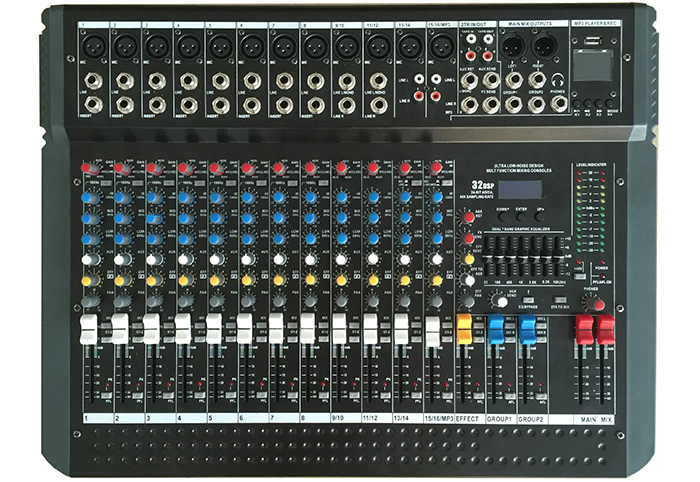

UV16
Product Description
Main characteristics
·1. Uv16 12 channel microphone input, 8 channels (4 groups) stereo input
·2. Uv16 9-16 microphone stereo sharing, 13-16 microphone stereo switchable)
·3. With 48V phantom power supply
·4.1-4 the INSERT function (i.e. insertion breakpoint function) of the road belt is convenient for external balance
·4.1-4 channels with 100Hz low cut function, 9-12 channels with lotus input interface, convenient wiring
·5. Input high, middle and low 3-stage equilibrium
·6. Two auxiliary outputs, one aux transmission and one FX transmission,
·7. Input each channel with main output, group, monitor PFL switch, convenient for selection
·8. Monitor indicator and peak indicator are shared
·9. With MP3 play function, MP3 with LCD, displaying songs
·10. With Bluetooth function, audio can be directly input via Bluetooth
·11. With recording function, you can record directly with U disk
·12. It can communicate with the computer directly, and the USB cable of the computer can output audio to the mixer
·13. Built in 24 bit DSP digital effect, 32 kinds of effect, good effect, comparable with professional effect device
·14. Effect mode with liquid crystal display, intuitive display and convenient operation
·15. Two main outputs with balanced and unbalanced output ports, two thrusters independently controlled, 60mm inlet thruster
·16. Real two group output, two thrusters independently controlled
·18. Stereo monitoring output, which can be monitored by headphones or external speakers
·Stereo assist return
·20. Output seven section equalization, + 12dB
·21. Built in switch power supply, convenient wiring
·22. Standard double 12 segment column level meter, accurately indicating the level size
·23. Unique appearance design, SMT surface mounting process, reliable performance
·24. With recording output and recording playback input
·1. Uv16 12 channel microphone input, 8 channels (4 groups) stereo input
·2. Uv16 9-16 microphone stereo sharing, 13-16 microphone stereo switchable)
·3. With 48V phantom power supply
·4.1-4 the INSERT function (i.e. insertion breakpoint function) of the road belt is convenient for external balance
·4.1-4 channels with 100Hz low cut function, 9-12 channels with lotus input interface, convenient wiring
·5. Input high, middle and low 3-stage equilibrium
·6. Two auxiliary outputs, one aux transmission and one FX transmission,
·7. Input each channel with main output, group, monitor PFL switch, convenient for selection
·8. Monitor indicator and peak indicator are shared
·9. With MP3 play function, MP3 with LCD, displaying songs
·10. With Bluetooth function, audio can be directly input via Bluetooth
·11. With recording function, you can record directly with U disk
·12. It can communicate with the computer directly, and the USB cable of the computer can output audio to the mixer
·13. Built in 24 bit DSP digital effect, 32 kinds of effect, good effect, comparable with professional effect device
·14. Effect mode with liquid crystal display, intuitive display and convenient operation
·15. Two main outputs with balanced and unbalanced output ports, two thrusters independently controlled, 60mm inlet thruster
·16. Real two group output, two thrusters independently controlled
·18. Stereo monitoring output, which can be monitored by headphones or external speakers
·Stereo assist return
·20. Output seven section equalization, + 12dB
·21. Built in switch power supply, convenient wiring
·22. Standard double 12 segment column level meter, accurately indicating the level size
·23. Unique appearance design, SMT surface mounting process, reliable performance
·24. With recording output and recording playback input
Specifications
technical parameter
Frequency response 20Hz ~ 20kHz (+ / 0.5dB)
Total harmonic distortion <% 1 (rated condition: 20Hz-20KHz)
Equivalent input noise ≤ - 110dbm
Input channel equalization characteristics
Low frequency 80Hz / ± 15dB
If 2.5kh / ± 15dB
High frequency 12khz / ± 15dB
Maximum gain at line input ≥ 20dB
Maximum gain of microphone input ≥ 50dB
Input impedance
Microphone input: ≥ 1.0k Ω
Tape input: 47 K Ω
Line output: ≥ 10K Ω
Effect exciter input: 20 K Ω
Output impedance
Left total output: ≤ 300 Ω
Right total output: ≤ 300 Ω
Total monitoring output: ≤ 300 Ω
Card output: ≤ 10K Ω
Effect exciter output: ≤ 10K Ω
Effector: simulation effector, adjustable delay time and repetition times
Overall power ≤ 40W
Power supply AC220V 50Hz
Shell size (h * w * d) 483 * 125 * 132mm
Package size (h * w * d) 535 * 300 * 182mm
Gross weight 8.2kg
Net weight 7.2kg
Frequency response 20Hz ~ 20kHz (+ / 0.5dB)
Total harmonic distortion <% 1 (rated condition: 20Hz-20KHz)
Equivalent input noise ≤ - 110dbm
Input channel equalization characteristics
Low frequency 80Hz / ± 15dB
If 2.5kh / ± 15dB
High frequency 12khz / ± 15dB
Maximum gain at line input ≥ 20dB
Maximum gain of microphone input ≥ 50dB
Input impedance
Microphone input: ≥ 1.0k Ω
Tape input: 47 K Ω
Line output: ≥ 10K Ω
Effect exciter input: 20 K Ω
Output impedance
Left total output: ≤ 300 Ω
Right total output: ≤ 300 Ω
Total monitoring output: ≤ 300 Ω
Card output: ≤ 10K Ω
Effect exciter output: ≤ 10K Ω
Effector: simulation effector, adjustable delay time and repetition times
Overall power ≤ 40W
Power supply AC220V 50Hz
Shell size (h * w * d) 483 * 125 * 132mm
Package size (h * w * d) 535 * 300 * 182mm
Gross weight 8.2kg
Net weight 7.2kg
