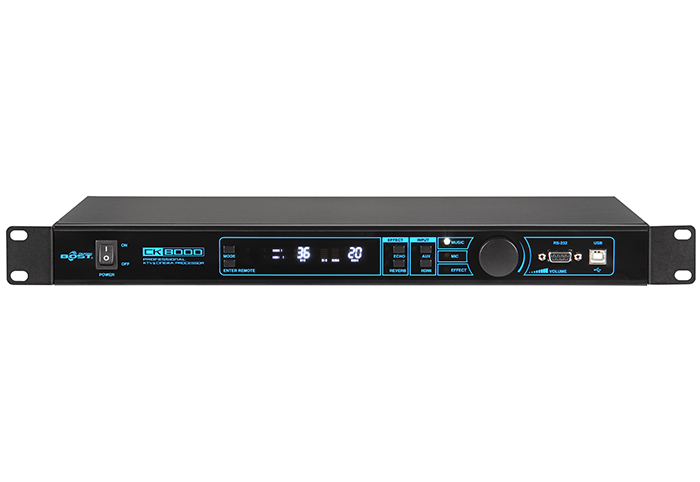

CK8000
Product Features
2. There are traditional KTV echo mode and popular network k-song dynamic reverberation mode. Two microphones simultaneously use different time-effect modes. For multiple speakers, there are complete even harmonic processing, which can more effectively solve the multi-speaker whistling and microphone low-frequency resonance.
3. HDMI 4 in and out, lotus input, can freely switch mode, 7.1 channel output, each channel has 10 parametric equalization, and each speaker can adjust the frequency division point delay independently; function, timbre, software and hardware index is the highest, dynamic can achieve 120 dB; AB two groups of microphones debug equalization and effect independently, of which microphone equalization 15. Fifteen segments are equalized, and seven segments of echo and reverberation are equalized.
The personalized setting function can limit the maximum volume, boot-up volume, boot-up times and password locking panel.
Specifications
|
model |
CK800 |
|
|
SNR |
MIC |
>99dB |
|
MUSIC |
>99dB |
|
|
THD+N |
MIC |
< 0.01%. |
|
MUSIC |
< 0.01%. |
|
|
MAX input level |
MIC |
150m Vrms |
|
MUSIC |
1.5 Vrms |
|
|
Dynamic range |
MIC |
> 96dB |
|
MUSIC |
> 100dB |
|
|
Noise |
MIC |
< 35uVrms |
|
MUSIC |
< 150uVrms |
|
|
Input parameter |
MIC |
2-way wired microphone |
|
MUSIC |
4 HDMI, 2 groups RCA (AUX) |
|
|
Output parameter |
8 speakons(main output, surround, rear surround, center and sub) |
|
|
1 piece HDMI |
|
|
|
INTPUT |
microphone independent 15 segments,
music 15 |
|
|
Crosstalk |
OUTPUT |
output 10 segments PEQ x 8 channels |
|
Idle |
5W |
|
|
main power |
Standby |
2W |
|
FBC |
|
|
|
Weight |
2KG |
|
|
Dimensions(WxDxH) |
480mm*202*46mm |
|
