1.Connect directly to the network using Ethernet wires - no need to add and weld audio wires
2.Use logic switches are integrated to control speech/mute in local mode and Dante devices in remote mode.
3. PoE power supply by network
4. The whole scalable ante system has 512 bidirectional audio channels
5. Soft button type user switch avoids the mechanical sound of switch meter.
6. There are many switch modes to choose from, multiple gain options, and low-cut switches.

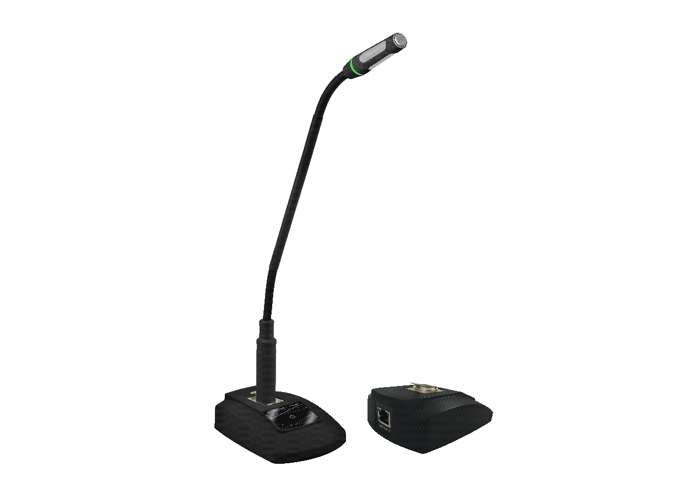

7. Equipped with 3-pin XLRF Canon Head Socket, it is suitable for quick installation of gooseneck microphone for any XLRM Canon Head output.
8. The anti-skid silicon foam cotton on the bottom of the microphone base and the solid shell made by die casting can reduce the influence of table vibration on the microphone.

Frequency response: 20-20KHz
High-pass filter: 80Hz, 18dB/octave
Input impedance: 1.4 k_
Maximum input level: -10dBu@+30dB gain
                               - 20dBu@+40dB gain
                               - 30dBu@+50dB gain
SNR: 65dB, 1Kz @ 1Pa
Power supply mode: POE IEE802.3af standard
Power consumption: 1.8W
Microphone Phantom Power Supply: DC 24V
Weight: 800g
Input terminal: 3 needles XLRF Canon Mother
Output terminal: standard Ethernet
Dante Network: RJ45 Interface
Please use a shielded CAT5 or CAT6 network cable with transmission speed of 100 Mbps.
