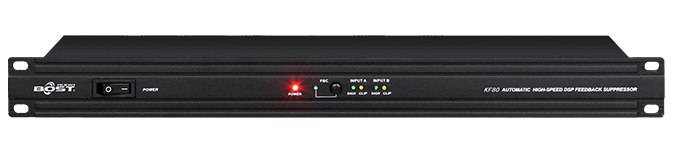

KF80
Applications
Application Range: Professional recording, TV broadcasting, church, court and conference center ascending requirements for pickup applications
Specifications
1) Effectively suppress microphone whistling and eliminate feedback before it happens, one-button operation mode, simple and easy to use;
2) Using DSP technology to capture the howling points in real time and automatically adapt to the acoustic environment;
3) Ultra-long conference microphone pickup distance, which can automatically adapt to the pickup distance;
4) 4 microphone inputs, each with independent gain adjustment, can be used for different microphones at the same time, the adjustment range is greater than 12dB;
5) High-quality speech amplifier, with +48V phantom power, independent switch control of each phantom power, no mutual interference;
6) The first two microphones can choose Canon or 6.35 interface input, which is convenient for wiring;
7) Each input has a signal indicator, which makes the operation more convenient;
8) Balanced and unbalanced two output modes, the output size is continuously adjustable, and the output has a total signal indicator and peak indicator, which is convenient for debugging;
9) The panel is equipped with a power indicator and a 48v phantom power indicator, to know the status of the machine at any time, and there is a blue indicator for feedback;
10) Sandblasting process of aluminum panel, light-transmitting keys, distinctive appearance.
The main technical parameters:
Frequency response: 20 Hz~20 KHz, +/-1.5 dB;
DSP sampling rate: 192 KHz;
AD/DA conversion: 24 bits;
Total frequency distortion: <0.01% (+4 dBU, 1 KHz);
Maximum output: +22 dBu (balanced), +16 dBu (unbalanced);
Signal to noise ratio: >95 dB;
Input power: 220 v~50 Hz;
Product size: (H*W*D) 44*483*240(mm);
Packing size: (H*W*D) 93*540*330(mm);
Net weight: 2.65 Kg
Gross weight: 3.30 Kg.
