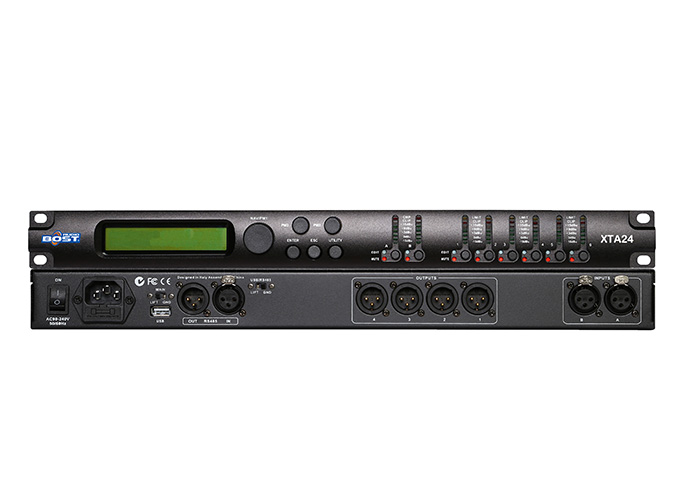

XTA24
Specifications
Outstanding performance 24-bit high-end converter plus 96 kHz frequency, with excellent audio performance
2-way input + 4-way output perfect hybrid matrix speaker processor
First-class DSP processing technology has 30 equalized filters for each input channel and three full-pass filters.
Each output channel has seven equalized filters
Each input and output filter can be selected as Bell, Chevron, High/Low Pass, Bandpass and Notch Filters.
Filter frequency: 20Hz~20kHz
Slope: -6dB/Oct to-48dB/Oct optional (type: Butterworth, Lynquez-Rayleigh, Bessel, optional)
Processing function with overflow restriction
Each output channel has a precise dynamic range controller, which is operated by an RMS value based on the input voltage limit.
The adjustable delay time of each input channel is up to 480 MS and that of each output channel is up to 270 Ms.
Computer network connection can communicate directly with computer through USB on the back board
RS485 can also be used to connect computers to set up, monitor and control machines through remote PC software.
Control front panel has LCD display window, knob keys can perform various functions of the machine operation.
The front panel has seven lights for displaying the output level or the display voltage limit.
PC software for remote control allows simultaneous connection of 32 machines
Preset storage function: up to 32
Password Locking Audio
Analog Input 2 x XLR Balance Formula
Analog Output 4 x XLR Balance Formula
Minimum load 150 ohm
THD+N distortion 0.001% at 1kHz 0dBu
S/N SNR > 110 dBA
Frequency response 20Hz-20kHz; - 0.5dBu at 20Hz and 20kHz
AD & DA Conversion 24bit-96kHz DSP Processing
DSP Processing MARANI < DSP
Digital Signal Processing with 24X32 Bit Precision, 54 Bit Accumulative Register, 96 Bit Accuracy Intermediate Data Processing Results
A filter with 30-segment equalization and three all-pass filters on the input of parametric equalizer
A filter with 7-segment equalization on the output
Input/Output Gain Input Gain Range: -18dB~+12dB, Stepping Accuracy: 0.1dBu
The input gain range is -18dB~+12dB, and the step accuracy is 0.1dBu.
All equalization filters of filter type can be set to Bell, Chevron, High/Low Pass, Bandpass and Notch filters
The gain range of the filter is -15dBu ~+15dBu, and the step accuracy is 0.5dBu.
The center frequency can be adjusted in the range of 20 Hz to 20 kHz with stepping accuracy of 1 Hz.
The Q-value range of the filter/broadband Bell filter is 0.4-128 and the step-by-step is 100.
The Q-value range of Chevron/Qualcomm/Low-pass filter is 0.1-5.1 and the step-by-step is 100.
Band-pass filter/notch filter Q ranges from 4 to 104 with a step of 100.
Optional Butterworth Slope 6/12/18/24/36/48 dB for High and Low Pass Filtering
Bessel slope 12/24 dB optional
Lynquez Rayleigh Slope 12/24/36/48 dB Optional
Noise Generator White/Pink Noise Generator, Level Range: -40dBu~0dBu
Input All-Pass Filter Bypass, Order 1/2 Optional
Input noise gate threshold range: -80dBu~-50dBu
Start-up time: 1ms ~ 1000ms; release time: 10ms ~ 1000ms
Input RMS Limit Start-up Threshold Range: 20dBu~10dBu
Optional range: 2:1-32:1; inflection point: 0-100%
Supply Range: -12dBu~+12dBu
Start-up time: 5 ms ~ 200 ms; release time: 0.1 s ~ 3 s
Output peak pressure threshold range: 20dBu~-10dBu
Start-up time: 1ms ~ 900ms; release time: 0.1s ~ 5S
Built-in overflow process dynamic margin 12dB
Path nothing, In A, In B, In A + B
The adjustable delay per input is as high as 480 ms, the adjustable delay per output is as high as 270 ms, and the step-by-step accuracy is 10.4 us.
Bottom Noise-90dBu
outline
Preset parameter user preset 32
Front panel 2X24 character LCD display
Input 7 lights show [-15dBu to + 15dBu; clipping; restriction]
Output 7 lamp display [- 15dBu to + 15dBu; clipping; restriction], output lamp can be used to display output level or display voltage limit.
Blue LED lamp (edit) shows the status of each channel
Red LED lamp (mute) shows the status of each channel
NAV/PM1, PM2, PM3 are switches for the rotary encoder selection menu
ENTER, ESC, UTILITY are key-press potentiometer entry/exit/application switches
EDIT/MUTE keys can control editing channels independently
Back panel 2x XLR base connector (input)
4x XLR Seat Connector (Output)
1X XLR RS485 Bus Connector (Input)
1X XLR RS485 Seat Connector (Output)
Type A USB Connector
2x grounding/suspension switch
IEC C13 16A power socket; ship power switch
AC power supply: 90-240VAC (50/60Hz) - 40W
Size 482x44x229mm 1U
Net/gross weight 3.5 Kg/4 Kg
