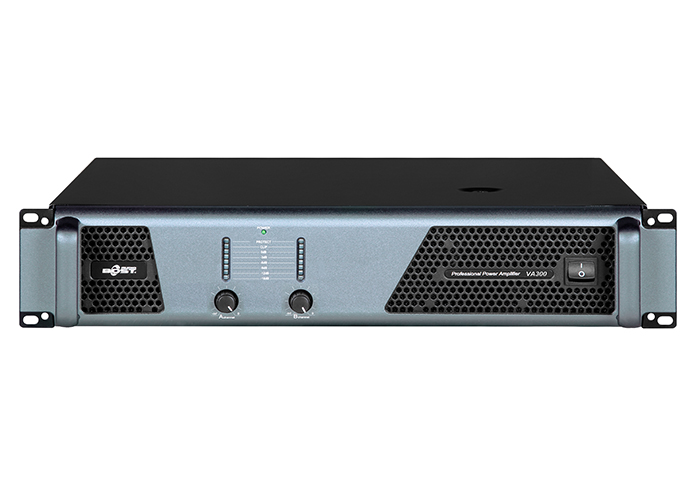

VA200/VA300/VA400/VA500/VA600/VA800/VA1000/VA1300

Specifications

Model
VA200 VA300 VA400 VA500
8Ω Stereo Power
200Wx2 300Wx2
400Wx2
500Wx2
4Ω Stereo Power
300Wx2
450Wx2
600Wx2
750Wx2
S/N Ratio
>90dB >90dB
>95dB
>100dB
Conversion Rate
60V/μS 60V/μS
60V/μS
60V/μS
Damping Factor
>400 >400
>450
>550
Frequency Response
20Hz-20KHz(+/-0.5dB)
THD
≤0.05%Rated Power@8Ω  1KHZ
IMD ≤0.01%Rated Power@8Ω
 Input Sensitvity
0.775v. 1.0v . 1.44v
Input Impedance
20KΩ(Balance)/10KΩ(Unbalance)
Crosstalk ≤-70dB
protection
DC, Short Circuit, Overtemperature, Voltage Limit, Soft Start, etc.DC, short circuit,Temperature,Clip Limiter,Slow  start
Weight
16kg 17kg
17.5kg
18kg
Dimensions(WxDxH)
483x430x88mm

Model
VA600 VA800 VA1000 VA1300
8Ω Stereo Power
600Wx2
800Wx2
1000Wx2
1300Wx2
4Ω Stereo Power
900Wx2
1200Wx2 1500Wx2
1950Wx2
S/N Ratio
>100dB >100dB
>104dB
>104dB
Conversion Rate
60V/μS 60V/μS
60V/μS
60V/μS
Damping Factor
>550
>550
>600
>600
Frequency Response
20Hz-20KHz(+/-0.5dB)

THD
≤0.05%Rated Power@8Ω  1KHZ
IMD ≤0.01%Rated Power@8Ω
 Input Sensitvity 0.775v. 1.0v . 1.44v
Input Impedance 20KΩ(Balance)/10KΩ(Unbalance)
Crosstalk
protection
DC, Short Circuit, Overtemperature, Voltage Limit, Soft Start, etc.DC,S红儿 circuit,Temperature,Clip Limiter,Slow  start
Weight
19kg 21kg 22.5kg 23kg
Dimensions(WxDxH)
483x430x88mm
