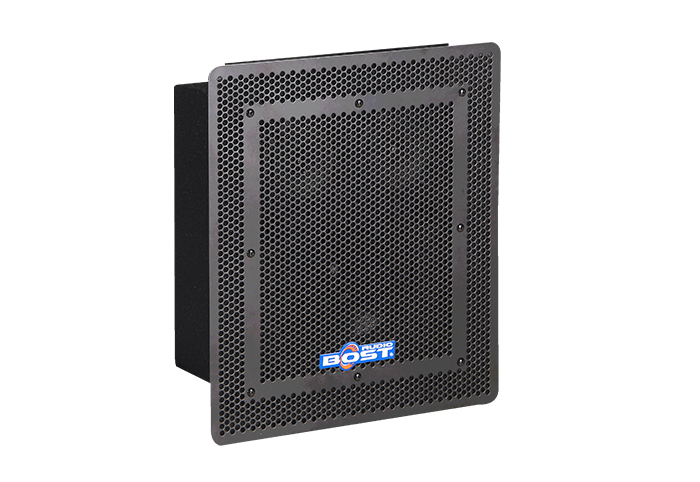

XD623
Applications
Application Range: Shadow K panoramic top ring, conference room ceiling, background sound fill, multimedia classroom, small music restaurant, etc.
Specifications
| Model | XD623 |
|
Drivers |
LF: 1*6.5" / HF: 2*3" |
|
Rated Power |
150W |
|
Rated power |
300W |
|
Nominal impedance |
8 ohms |
|
Frequency Range |
100Hz-19KHz |
|
Sensitivity(1m/1W) |
95dB |
|
MAX SPL |
120dB |
|
Dispersion(HxV) |
90°*90° |
|
Construction |
|
| Enclosure Material | Plywood |
|
Enclosure Grille |
Black/white round-hole dust-proof steel mesh with breathable cotton |
|
Finish |
Black/white environmentally friendly oily and wear-resistant paint (customizable color according to customer requirements) |
|
Dimensions(W*D*H)（mm) |
255*148*290 |
|
Net weight (Kg) |
6.6Kg |
