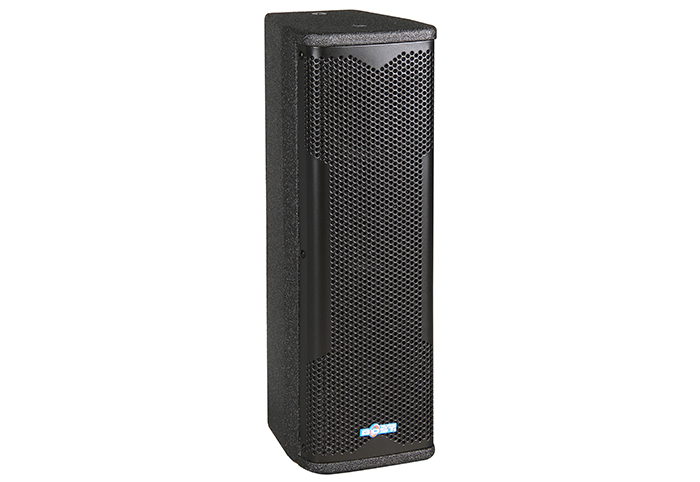

VC241E
Applications
Application Range: Conference hall, lecture hall, multi-function hall, intelligent classroom, command center, etc.
Specifications
|
Drivers |
LF: 2*4"90 magnetic 25 core / HF: 1*1.75"100 magnetic 44 core |
|
Rated Power |
100W with DSP Digital Dante Transmission POE Power Supply |
|
Nominal impedance |
4 ohms |
|
Frequency Range |
120Hz-19KHz |
|
Sensitivity(1m/1W) |
95dB |
|
MAX SPL |
123dB |
|
Dispersion(HxV) |
90°*90° |
|
Construction |
|
|
Enclosure Material |
Birch Plywood |
|
Enclosure Grille |
Air permeable cotton in black round hole dustproof steel mesh |
|
Finish |
Black environmental protection waterproof and wear-resistant polyurea paint |
|

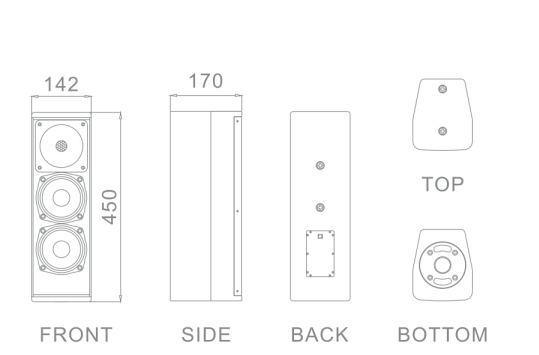

Dimensions(W*D*H)（mm) |
142*170*450 |
|
Net weight (Kg) |
7.1Kg |
Configuration
