T10+T25
Applications
Application Range: Ballroom, large conference room, lecture hall, performing hall, small and medium-sized performance, multi-function hall, auditorium, sports hall
Product Features
Specifications

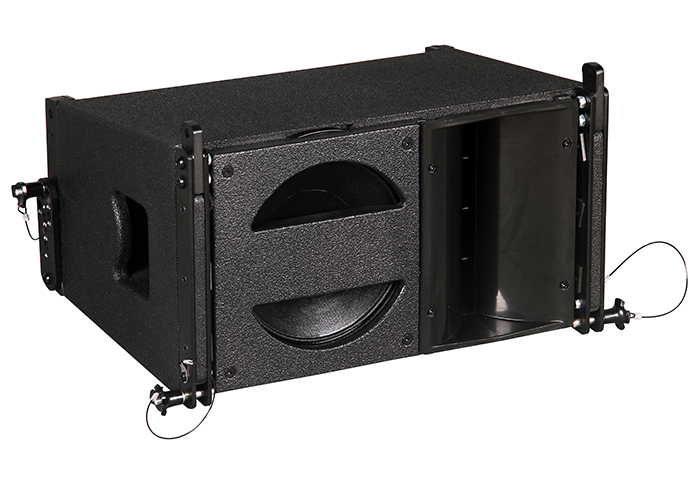

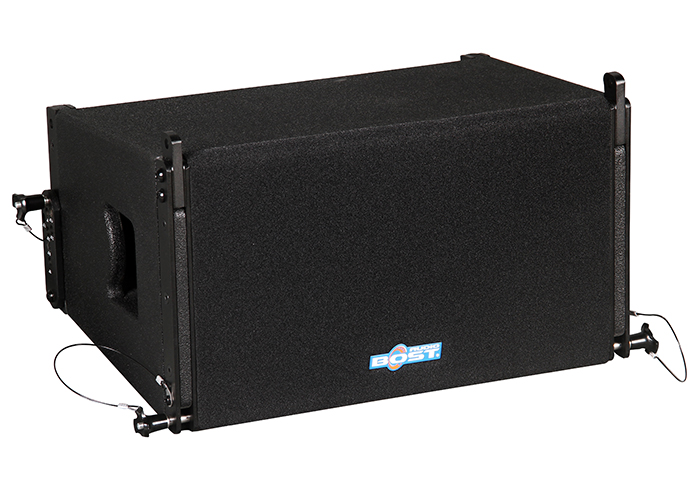

| Model | T10 |
|
Drivers |
LF: 1*10" neodymium / HF: 2*1.75" neodymium |
|
Rated Power |
500W |
|
Rated power |
800W |
|
Nominal impedance |
8 ohms |
|
Frequency Range |
60Hz-20KHz |
|
Sensitivity(1m/1W) |
102dB |
|
MAX SPL |
132dB |
|
Dispersion(HxV) |
100°*15° |
|
Construction |
|
|
Enclosure Material |
Birch Plywood |
|
Enclosure Grille |
Cotton black square hole dust-proof steel mesh with air permeability |
|
Finish |
Black environmentally friendly two-component water-borne wear-resistant paint (color customized according to customer requirements) |
|
Dimensions(W*D*H)（mm) |
500*355*274 |
|
Net weight (Kg) |
20.2Kg |
|

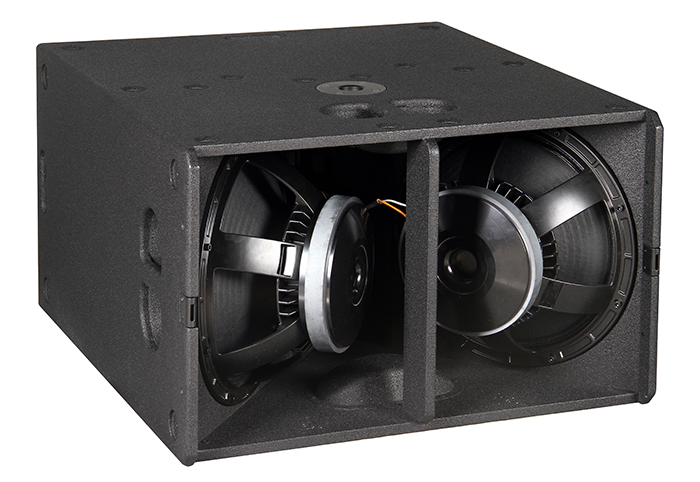

Model |
T25(Active) |
|
Drivers |
LF: 2*15" |
|
Rated Power |
1600W/4 ohms with DSP Processing Module |
|
Rated power |
Power Amplifier Module Output 1600W/4 ohms |
|
Nominal impedance |
4 ohms |
|
Frequency Range |
35Hz-200Hz |
|
Sensitivity(1m/1W) |
100dB |
|
MAX SPL |
133dB |
|
Construction |
|
|
Enclosure Material |
Plywood |
|
Enclosure Grille |
Black square hole dustproof steel mesh with air permeable cotton |
|
Finish |
Black environmentally friendly two-component water-borne wear-resistant paint (color customized according to customer requirements) |
|
Dimensions(W*D*H)（mm) |
700*800*440 |
|
Net weight (Kg) |
58.1Kg |

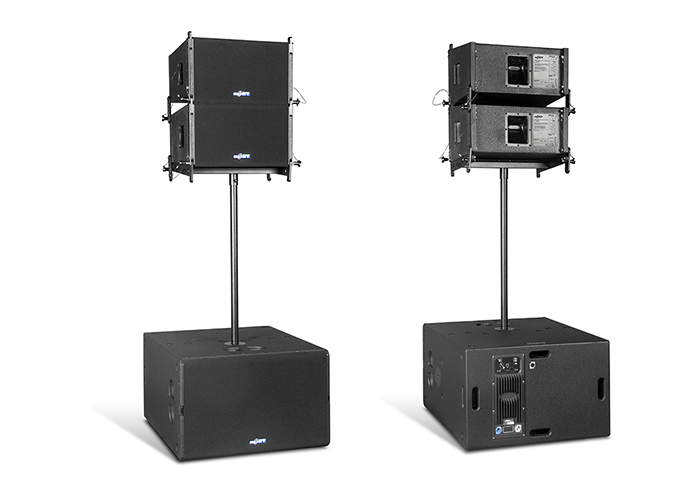

Configuration
