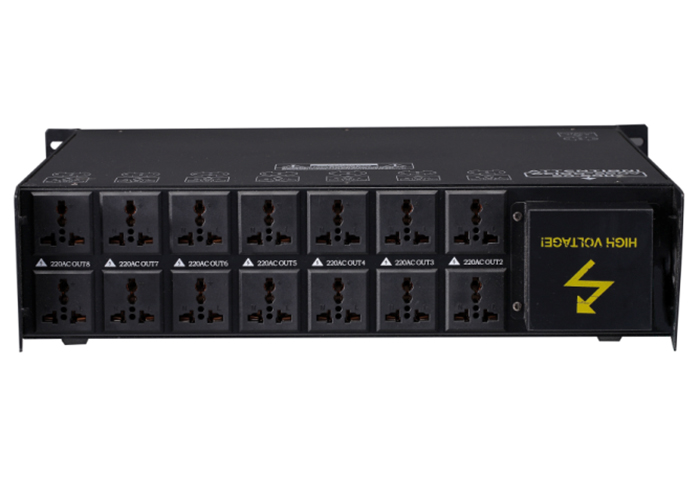

PC-2216 Power timing
Specifications
| Model | PC-2216 |
|
Maximum input current |
80A |
|
Single way maximum output current |
30A |
|
Working voltage |
220V/50-60Hz |
|
Each power all the way |
Can be up to3000W |
|
The input and output voltage |
AC input voltage = AC output voltage (before placing an order please specify, the optional voltage: 110 v input = 110 v output, input = 220 v, 220 v output, optional 380 v input = 22 v output |
|
The output power socket |
The multi-function socket, in line with European and American standards.One button control two way, two way for 1 set, 16 controlled universal plug, (panel 2 road ahead can do direct) |
|
Socket material |
Each socket material phosphor copper, passed inspection before installation |
|
Each switch time between all the channels |
1 second, 1 indicator light between every 2 channel switch, the backend configuration a safety switch button (BYPASS) BYPASS function |
|
relay |
Ningbo pine le card (original quality goods) |
|
Circuit board line |
Using 60% high purity tin, high-end distribution technology, through enhancing bold processing |
|
transformer |
A &c original authentic |
|
Built-in power supply cord |
Built-in wire each channel 2.5 square, connection outside the built-in 10 square wire, (the factory does not provide external cable, it should be matched according to the actual engineering demand ) |
|
The voltage display table |
Digital display meter |
|
Cabinet height |
2 u (conform to the cabinet according to the standard) |
|
switch |
Delixi brand 80A air switch |
|
The controlled function |
Yes, (each channel can be separately controlled) 2 channel button control up and down each road, 16 controlled universal plug |
|
Online way |
Yes, (can support 8 devices at the same time online) online terminal: Caron |
|
Control interface |
With optional USB to RS232 connection serial port, must show before placing orders |
|
filter |
Imported KMX professional filter, with three filter filter (can be choosed) |
