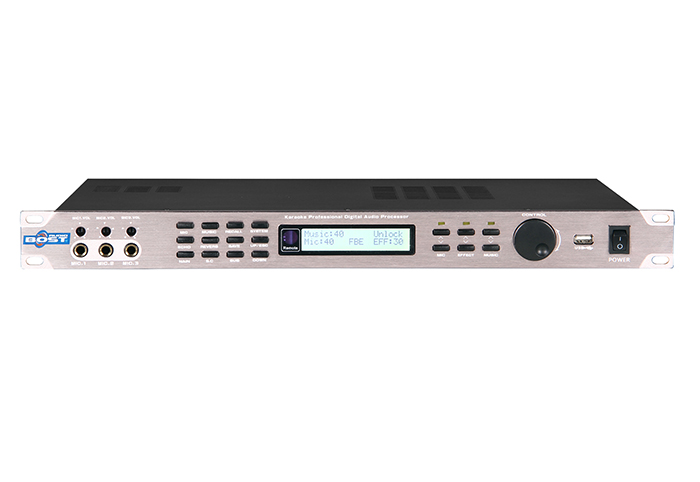

M8 professional digital audio processor
Product Description
1, this series products are karaoke effects with speaker processor functions, function of each part are adjustable independently;
2, use 24 bit data bus and 32 bit DSP;
3, MUSIC has balanced 7 segment parameters input channel
4, MIC input channel is equipped with 15 parameter equilibrium
5, the main output has 5 section parameter equilibrium
6, in the rear output, the output and the subwoofer equilibrium has three parameters
7 has three levels of feedback inhibition, microphone, and can choose OFF/ON
8, can store 16 kinds of patterns
9, the microphone output, the main output, the output of rear, subwoofer output, output has pressure limit and time delay function
10, internal management mode and user mode, the user model can't storage after adjusting parameters
11, the machine is equipped with a fully functional menu, also can be set via a PC interface
2, use 24 bit data bus and 32 bit DSP;
3, MUSIC has balanced 7 segment parameters input channel
4, MIC input channel is equipped with 15 parameter equilibrium
5, the main output has 5 section parameter equilibrium
6, in the rear output, the output and the subwoofer equilibrium has three parameters
7 has three levels of feedback inhibition, microphone, and can choose OFF/ON
8, can store 16 kinds of patterns
9, the microphone output, the main output, the output of rear, subwoofer output, output has pressure limit and time delay function
10, internal management mode and user mode, the user model can't storage after adjusting parameters
11, the machine is equipped with a fully functional menu, also can be set via a PC interface
Specifications
|
Maximum input level |
4V（RMS) |
|
Maximum output level |
4V（RMS) |
|
Music channel gain |
MAX:12dB |
|
Microphone sensitivity |
64mV(Out:4V) |
|
SNR |
>80dB |
|
The input voltage |
-220V 50Hz |
|
Size (length x width x height) |
483x218.5x47.5mm |
|
The net weight |
3.5Kg |
