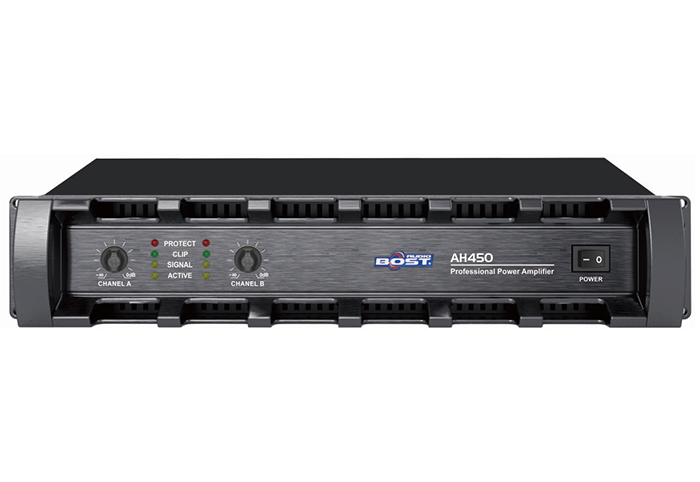

AH Professional power amplifier
Specifications
|
Model |
AH350 | AH450 | AH550 | AH650 | |
|
8Ω Stereo Power |
350Wx2 |
450Wx2 |
550Wx2 |
650Wx2 |
|
|
4Ω Stereo Power |
500Wx2 |
650Wx2 |
800Wx2 |
1000Wx2 |
|
|
8Ω Bridged mono output |
1000W |
1300W |
1600W |
2000W |
|
|
S/N Ratio |
100dB |
100dB |
105dB |
105dB |
|
|
Conversion Rate |
40V/μS |
40V/μS |
50V/μS |
50V/μS |
|
|
Damping Factor |
450:1 | 450:1 | 500:1 | 500:1 | |
|
Frequency Response |
20Hz-20KHz(+/-0.5dB) |
||||
|
THD |
≤0.05%Rated Power@8Ω 1KHZ |
||||
| IMD | ≤0.01%Rated Power@8Ω | ||||
|
Input Sensitvity |
0.775v. 1.0v . 1.44v | ||||
|
Input Impedance |
20KΩ(Balance)/10KΩ(Unbalance) |
||||
| Crosstalk | ≤-80dB | ||||
|
protection |
Direct current, short circuit, over temperature, pressure, soft start, etc. DC, Short circuit，Temperature,Clip Limiter,Slow start |
||||
|
Weight |
15kg |
16.5kg |
17.5kg |
19kg |
|
|
Dimensions(WxDxH) |
483x460x89mm |
||||
≤-80dB
|
Model |
AH850 | AH1100 | AH1300 | AH1500 | |
|
8Ω Stereo Power |
850Wx2 |
1100Wx2 |
1300Wx2 |
1500Wx2 |
|
|
4Ω Stereo Power |
1300Wx2 |
1650Wx2 |
1900Wx2 |
2200Wx2 |
|
|
8Ω Bridged mono output |
2600W |
3300W |
3800W |
4400W |
|
|
S/N Ratio |
105dB |
105dB |
110dB |
110dB |
|
|
Conversion Rate |
60V/μS |
60V/μS |
70V/μS |
70V/μS |
|
|
Damping Factor |
550:1 | 550:1 | 600:1 | 600:1 | |
|
Frequency Response |
20Hz-20KHz(+/-0.5dB) |
||||
|
THD |
≤0.05%Rated Power@8Ω 1KHZ | ||||
| IMD | ≤0.01%Rated Power@8Ω | ||||
| Input Sensitvity | 0.775v. 1.0v . 1.44v | ||||
| Input Impedance | 20KΩ(Balance)/10KΩ(Unbalance) | ||||
| Crosstalk | |||||
|
protection |
Direct current, short circuit, over temperature, pressure, soft start, etc. DC, S red circuit，Temperature,Clip Limiter,Slow start |
||||
|
Weight |
22kg | 24kg | 26kg | 28kg | |
|
Dimensions(WxDxH) |
483x460x89mm |
||||
