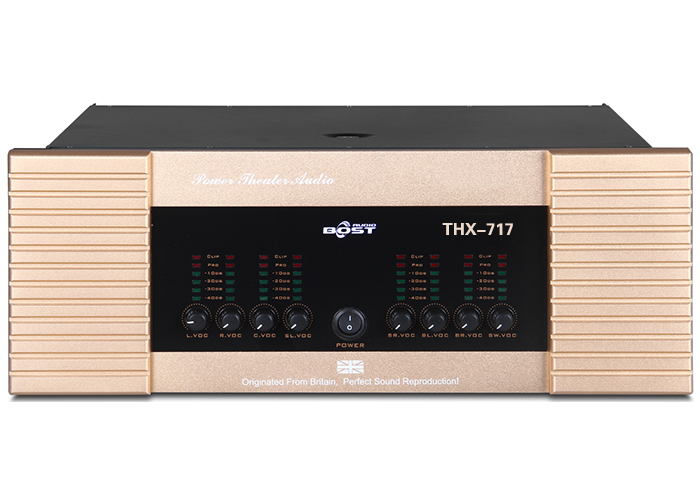

THX-517/717
Specifications
|
model |
THX-517 |
THX-717 |
|
8 the Lord sound power（L) 8Ω |
400W |
400W |
|
8 the Lord sound power（R) 8Ω |
400W |
400W |
|
8 the power of（C) 8Ω |
400W |
400W |
|
8 the left after the surrounding power |
400W |
400W |
|
8 the right rear surround power |
400W |
400W |
|
8 the left around the power |
/ |
400W |
|
8 the right surround power |
/ |
400W |
|
8 the ultra low power |
800W |
800W |
|
S/N Ratio |
105dB |
105dB |
|
Conversion Rate |
60v/µS |
60v/µS |
| Damping Factor | 450:1 | 500:1 |
|
Frequency Response |
20Hz-20KHz(+/-0.5dB) |
|
|
THD |
≤0.01%Rated Power@8Ω 1KHZ |
|
|
Intermodulation distortion |
≤0.01%Rated Power@8Ω |
|
|
input sensitivity |
Input Sensitvity 1.0v |
|
|
Input Impedance |
20KΩ (Balance)/10KΩ (Unbalance) |
|
|
Crosstalk |
≤-70dB |
|
|
main power |
-230V50/60Hz ; HUSE:T20A |
|
|
Weight |
70kg |
|
|
Dimensions(WxDxH) |
483×430×176mm |
|
