MT-12(Two-way 12" loud speaker system)
Product Description
1.box of high quality plywood combined into the slot wedge bonding process, so that the cabinet structure is more durable. Before adopting the low-frequency inverter design allows clean and powerful.
2. treble driver uses 1.75 "diaphragm assembly imported from Europe, the horn can use multi-angle rotation, bass 12" also used in Europe produced from imported materials. With superior sound pressure level and clear translucent high-frequency, either singing or doing high-end business meeting class PA are the best option.
3. rapid expansion of the treble horn adjust the time difference between the high and low frequency unit and calibration phase angle difference and ensure a smooth wavefront provide precise beam pattern control while carefully designed to eliminate interference crossover point in the nearby area.
4. crossover network imported from Germany, HI-CAP golden high quality capacitors and air-core inductors round, Treble BOST patent protection circuit design, superior heat resistance of aluminum with aluminum radiator used together to maximize the efficiency and reducing unnecessary distortion.
Through many years of senior engineers KTV audio concept design, box with multi-angle design principles, making on-site installation and commissioning aspects of simple and quick, reasonably safe.
2. treble driver uses 1.75 "diaphragm assembly imported from Europe, the horn can use multi-angle rotation, bass 12" also used in Europe produced from imported materials. With superior sound pressure level and clear translucent high-frequency, either singing or doing high-end business meeting class PA are the best option.
3. rapid expansion of the treble horn adjust the time difference between the high and low frequency unit and calibration phase angle difference and ensure a smooth wavefront provide precise beam pattern control while carefully designed to eliminate interference crossover point in the nearby area.
4. crossover network imported from Germany, HI-CAP golden high quality capacitors and air-core inductors round, Treble BOST patent protection circuit design, superior heat resistance of aluminum with aluminum radiator used together to maximize the efficiency and reducing unnecessary distortion.
Through many years of senior engineers KTV audio concept design, box with multi-angle design principles, making on-site installation and commissioning aspects of simple and quick, reasonably safe.
Applications
Application Range: luxury entertainment rooms, karaoke rooms, function rooms, conference hall, club, hall, banquet hall, shaking it slowly, nightclub
Product Features
Color Selection
Specifications
|
Drivers: |
LF: 1x12" / HF:1x1.75" |
|
Rated Power: |
400W |
|
Recommended Amplifier: |
600W |
|
Nominal Impedance: |
8 ohms |
|
Frequency Range: |
45Hz-19KHz |
|
Sensitivity(1m/1w): |
97dB |
|
MAX SPL: |
126dB |
|
Dispersion(HxV) |
90°*60° |
|
CONSTRUCTION |
|
|
Enclosure Material: |
Birch plywood |
|
Enclosure Grille: |
Posted breathable cotton dust inside black holes are hexagonal steel mesh |
|
Finish: |
Environmentally friendly water-based paint wear-resistant (color can be customized) |
|

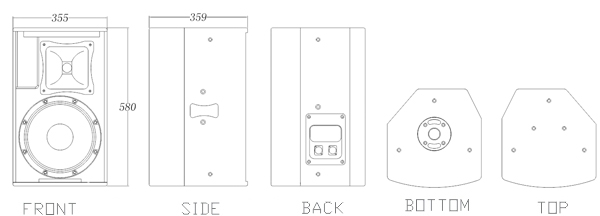

Dimensions(mm): |
W355xD358xH580 |
|
Net Weight: |
18.2Kg |
Configuration
