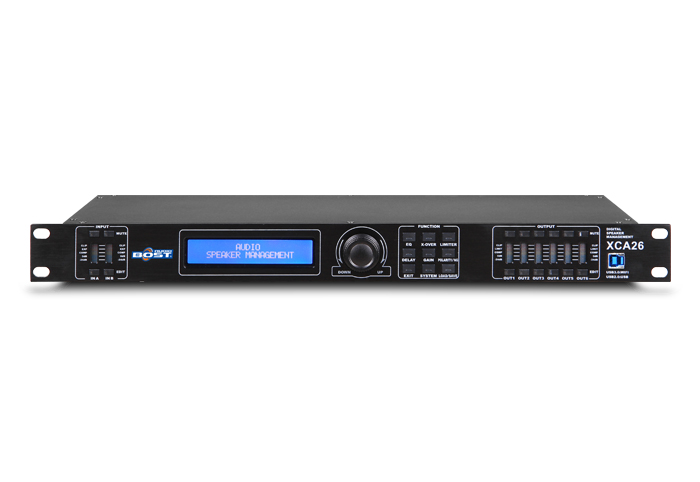

XCA24/XCA26/XCA28/XCA36/XCA46/XCA48

Product Description

● 192KHz sampling frequency of 32-bit DSP processor 24-bitA / D and D / A conversion
● There are 2 inputs 4 outputs, 2 inputs 6 outputs, two input 8 outputs, 3 inputs 6 outputs, 4 inputs 6 outputs, 4 input 8 output a variety of model selection, flexible combination of various dividing mode, high and low pass crossover can be up to 20Hz 20KHz
● provide USB and RS485 interfaces can be connected to the computer via RS485 interface can connect up to 250 machines and more than 1500 meters distance external computer to control.
● Function keys and Puller panel directly connected to the computer, or set the functions controlled by PC control software are very easy to use, intuitive and simple
● machine can store 30 user programs
● can be set by the panel SYSTEM button control panel PIN code lock function to prevent parameter being modified
● Each input and output sections are 6 independent parametric equalizer, adjust the gain range up to ± 20dB, while a balanced output channels can also choose to Lo-sheif and Hi-sheif two ways ramp
● 2 * 24LCD blue backlit display feature set, 6-segment LED display input / output precision digital level meter, mute and edit status
● Each input and output both delay and phase control and mute settings, delay up to 1000ms, delay units are available in milliseconds (ms), meters (m), feet (ft) three kinds
● can control mute and channel matrix via USB interface or RS485 interface to connect the control
● You can divide function lock, data privacy
● Input channel adjustable noise gate
● can be connected to the computer via WIFI

Specifications

Model	XCA24	XCA26	XCA28	XCA36	XCA46	XCA48
Input channel and socket	2 channel female XLR	2 channel female XLR	2 channel female XLR	3 channel female XLR	4 channel female XLR	4 channel female XLR
Output channels and socket	4 channel male XLR	6 XLR male XLR	8 channel male XLR	6 channel male XLR	6 channel male XLR	8 XLR male XLR
Input impedance	Balance: 20KΩ
Output Impedance	Balance: 100Ω
PC Interface	Panel a USB port, the rear plate 2 RS485 interface (RJ-45 seats)
Total simulation system than	>78dB(1KHz)
Input Range	≤+25dBu
Frequency response	20Hz-20KHz(-0.5dB)
SNR	>118dB
Distortion	<0.02% OUTPUT=0dBu/1KHz
Channel separation	>88dB(1KHz)
Input channel function
Enter muting	The establishment of a separate control for each channel mute
Input Delay	Each input channel has a separate control delay adjustment range 0-1000ms, less than 10ms, in steps of 21us; 10ms-20ms, in steps of 84us; greater than 20ms, in steps of 0.5ms
Input phase	Noninverting (+) or the inverting (-)
Input Equalization	Each input channel is set for 6 parametric EQ, adjust the parameters in the Parameter: center frequency: 20Hz-20KHz, a total of 239 frequencies Bandwidth: 0.05oct-3oct, in steps of 0.05oct gain: -20dB- + 20dB, step distance of 0.1dB
Input compression	Threshold: -40dBu ~ + 20dBu, in steps of 0.5dBu; Compression ratio: less than 2.0 1:: 1.0: 1 to 20 to 1 in steps of 0.1 greater than 2.0: 1, in steps of 0.5; Response time: 0.3mS ~ 200mS, Less than 1mS, in steps of 0.1mS more than 1mS, in steps of 1mS release time: 50mS ~ 5000mS increments of 1mS
Input Level	Adjustment range: -80dB- + 12dB, in steps of 0.2dB
Output channel function
Output mute	The establishment of a separate control for each channel mute
Input Selection	Each output channel can be individually selected different input channels, you can select any combination of input channels
Output Gain	Adjustment range: -80dB- + 12dB, in steps of 0.2dB
Output delay	Each input channel has a separate control delay adjustment range 0-1000ms, less than 10ms, in steps of 21us; 10ms- 20ms, in steps of 84us; greater than 20ms, in steps of 0.5ms
Output phase	Noninverting (+) or the inverting (-)
Divider settings	Each output channel can be set to a low-pass filter (LPF) and a high-pass filter (HPF) separately adjustable parameters: Filter Type: Linkwitz-Riley / Bessel / Butterworth frequency turning point: 20Hz-20KHz, a total of 239 frequencies attenuation slope: 12dB / oct, 18dB / oct, 24dB / oct, 48dB / oct
Limiter Setting	Each output channel can be set separately limiter adjustable parameters: threshold: -40dBu- + 20dBu, in steps of 0.5dBu start time: 0.3ms-200ms, less than 1ms, in steps of 0.1ms; greater than 1ms in steps of 1ms release Time: 50ms ~ 5000ms
Input Expansion	Threshold: -40dBu ~ + 20dBu, in steps of 0.5dBu; expansion ratio: 1: 1.0 to 1:20 less than 1:20, In increments of 0.1 greater than 1: 2.0, in steps of 0.5; response time: 50mS ~ 500mS, stride Release time for the 1mS: 0.3mS ~ 200mS less than 1mS, increments of more than 0.1mS 1mS, in steps of 1mS
Compression Settings	Threshold: -40dBu ~ + 20dBu, in steps of 0.5dBu; compression ratio: less than 1 2.0:: 1.0: 1 to 20 1 When, in steps of 0.1 greater than 2.0: 1, in steps of 0.5; Response time: 0.3mS ~ 200mS, Less than 1mS, in steps of 0.1mS more than 1mS, in steps of 1mS release time: 50mS ~ 5000mS increments of 1mS
Output EQ	Each output channel can be set six balanced, balanced way selectable Parameter / Lo-Shelf / Hi-Shelf. A, adjustable parameters in the Parameter state: center frequency: 20Hz-20KHz, a total of 239 frequencies Bandwidth: 0.05oct-3oct, in steps of 0.05oct gain: -20dB- + 20dB, in steps of 0.1dB B, at Lo-Shelf and Hi-Shelf Status adjustable parameters : center frequency: 20Hz-20KHz, a total of 239 frequencies slope: 6dB / 12dB gain: -20dB- + 20dB, in steps of 0.1dB
Processor	96KHz sampling frequency, 32-bit DSP processor, 24-bit A / D and D / A conversion
Display	2 × 24 LCD blue backlit display settings, 8-segment LED display input / output precision digital level meter, mute and edit status
Power	≤25W
Power supply	AC110V/220V 50/60Hz
Product Size (width × depth × height)	482×228×44mm
Net weight	4.1kg
Shipping Dimensions (W × D × H)	1PC:555X325X98mm/0.0177m3 6PCS:569X339X612mm/0.1180m3
GW	1PC:5(kg) 6PCS:31.5(kg)
