System Type：

Internal, external two-way system

Rated power (built-division):

500W/8 ohms AES

Rated power (external division):

HF：80W/ LF：400W

Rated impedance:

HF：8 ohms/ LF：8 ohms

Frequency range (± 3dB):

45Hz-19KHz

Coverage:

H90º，V90º

Sensitivity:

HF：110 dB/ LF：99 dB

MAX SPL:

HF：132 dB/LF：128 dB

Wiring:

Spring terminals

Unit:

HF：1.75"/ LF：15"x1

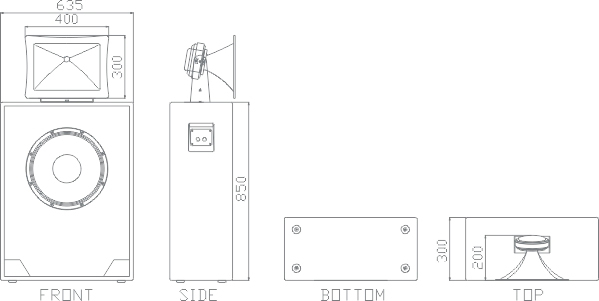

Size (HF&MF):

W400xH300xD180mm

Size (LF):

W635xH850xD300mm
