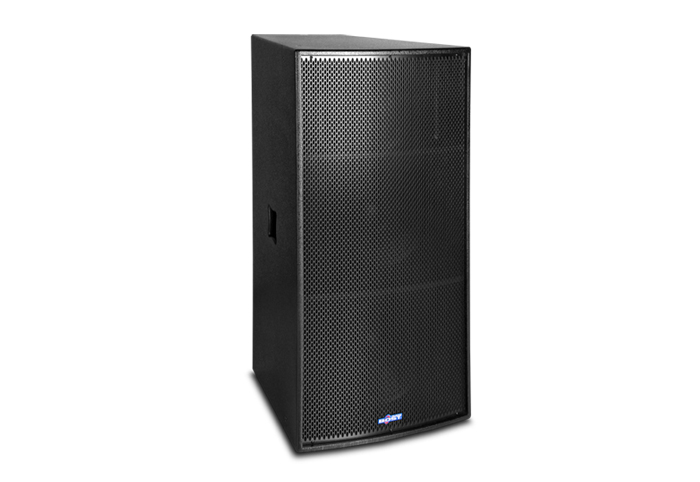

T225AII(Two-way 15" Full Range Speaker)
Product Description

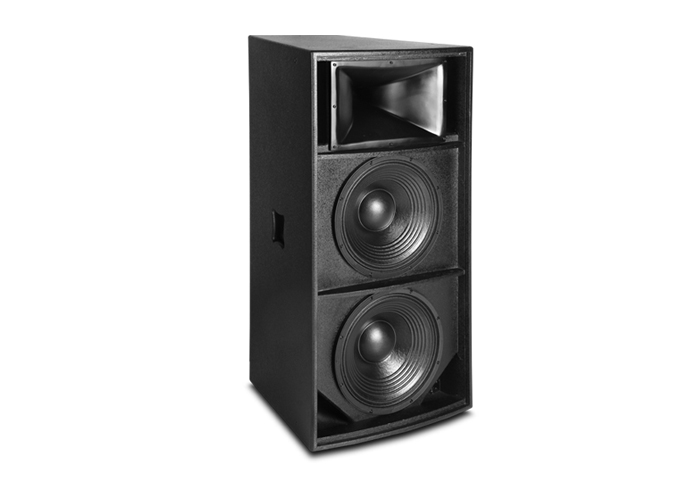

1. T225AII is a dual 15 "two-way speaker built trapezoid, 3" tweeter diaphragm assembly imported from Europe with the large horn design, bass 15 "is also used in Europe produced from imported materials.

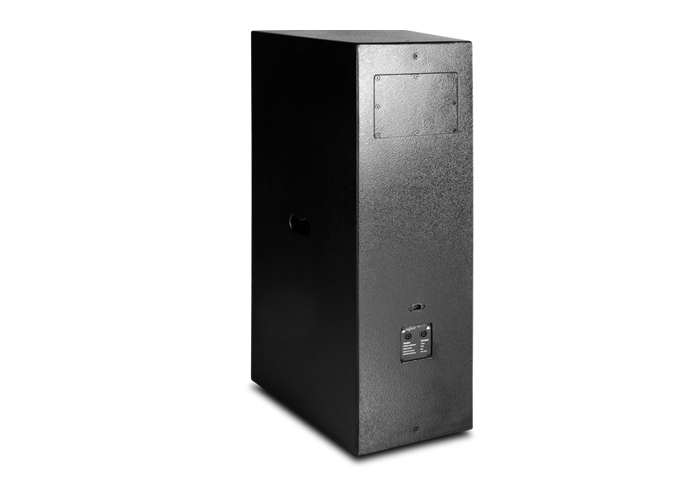

2. box is high quality plywood incorporated grooves wedge welding process, rugged and durable, the rear housing panel has three sockets for easy maintenance activities of the board and user-friendly design, easy connection. Two built-in handles flush with the box design, easy handling.
3. unique crossover network design, imported from Germany, HI-CAP capacitors and resistors with gold aluminum heat sink, greatly enhance the power capacity, Treble BOST patent protection circuit and temperature protection circuit inductance design.
4. After a senior engineer careful simulation and optimization design of experiments, it has a flat frequency response to ensure that the work does not produce high-power frequency drift, low frequency dynamic, magnificent, high frequency is bright and mellow vocals meet the various kind of sound pressure demanding places.
2. box is high quality plywood incorporated grooves wedge welding process, rugged and durable, the rear housing panel has three sockets for easy maintenance activities of the board and user-friendly design, easy connection. Two built-in handles flush with the box design, easy handling.
3. unique crossover network design, imported from Germany, HI-CAP capacitors and resistors with gold aluminum heat sink, greatly enhance the power capacity, Treble BOST patent protection circuit and temperature protection circuit inductance design.
4. After a senior engineer careful simulation and optimization design of experiments, it has a flat frequency response to ensure that the work does not produce high-power frequency drift, low frequency dynamic, magnificent, high frequency is bright and mellow vocals meet the various kind of sound pressure demanding places.
Applications
Application Range: Theater, performing arts hall, small touring, multi-purpose halls, auditoriums, stadiums, dance halls, banquet hall, lecture hall, theater company, school

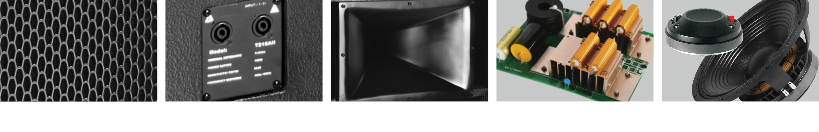

Product Features
Color Selection
Specifications
|
Drivers: |
LF: 2x15" / HF:1x3" |
|
Rated Power: |
1200W |
|
Recommended Amplifier: |
1300W |
|
Nominal Impedance: |
4 ohms |
|
Frequency Range: |
35Hz-19KHz |
|
Sensitivity(1m/1w): |
102dB |
|
MAX SPL: |
136dB |
|
Dispersion(HxV) |
100°*50° |
|
CONSTRUCTION |
|
|
Enclosure Material: |
Birch plywood |
|
Enclosure Grille: |
Paste breathable cotton inner speech vertical flat steel hexagonal hole dustproof |
|
Finish: |
Black environmentally friendly water-based abrasion resistant paint (color can be customized) |
|
Dimensions(mm): |
W578xD580xH1186 |
|
Net Weight: |
66Kg |
Configuration
